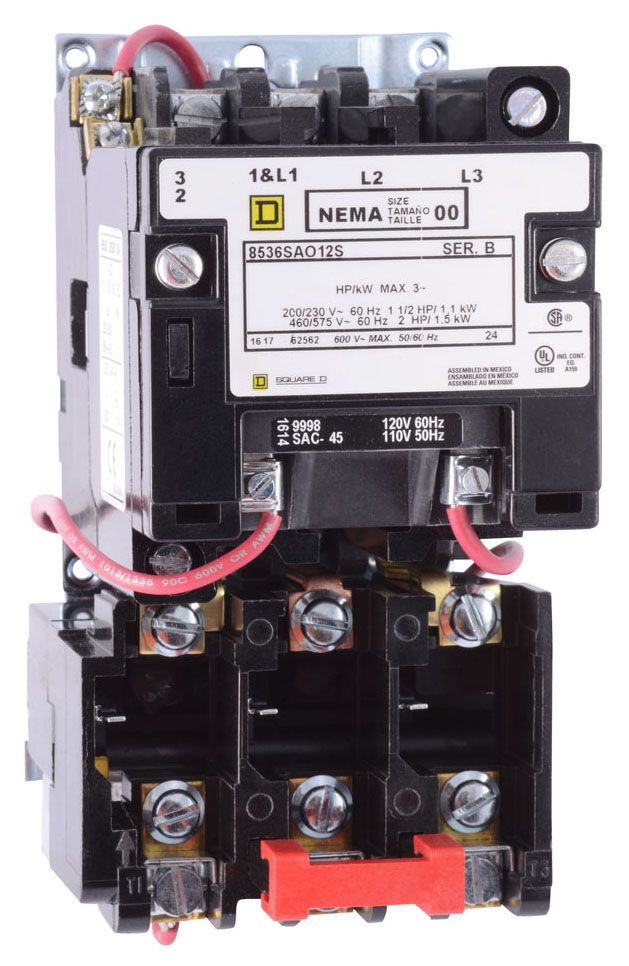

NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, open [TAA]

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, open [TAA]

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, open [TAA]

UPC:  78590177071

Part Number: 8536SAO12V03

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $386.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SAO12V03
Additional Information REACH Compliant; Overall Dimension 3.5 Inch Width x 4.22 Inch Depth x 6.81 Inch Height; Number of Poles 3; Terminal Type Screw Clamp; Approval UL, CSA
Amperage Rating 9 AMP
Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Auxiliary Contact Composition Without
Auxiliary Contacts Without
Base Price 0.0000
Brand Name S
Catalog Number 8536SAO12V03
Coil Voltage 220 V AC 50 Hz;240 V AC 60 Hz;220/240 Volt AC 50/60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Circuit Common control circuit
Control Circuit Type Common control circuit NULL
CountryOfOrigin MX
Current Rating 9 Amp (Rated), 5 Kiloamp (SCCR)
DDCATEGORY 2116
Depth Metric 107.0 mm|
Directory CIS
Enclosure OPEN
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Height Metric 172.0 mm
Horsepower Rating 1.5 HP 200 V AC;1.5 HP 230 V AC;2 HP 460 V AC;2 HP 575 V AC NULL
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, open;STARTER 600VAC
Item Number 77071
Line Rated Current Metric 9.0 A
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, COMMON CONTROL CIRCUIT TYPE; NEMA 00 SIZE; 9 AMP (RATED), 5 KILOAMP (SCCR) CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 220/240 VOLT AC 50/60 HERTZ COIL VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC NULL
Model 8536
Motor Power 1.5HP@200/230VAC - 2HP@460/575VAC
Motor Starter Type Non reversing
NEMA Size 00
Noun *
Number Of Phases 3 phase
Number Of Poles 3
Overloads Melting Alloy
Phase 3-PHASE;3
Pilot Light Without pilot light
Power Rating Voltage 1.5 HP at 200/230 Volt AC 50/60 Hertz, 2 HP at 460/575 Volt AC 50/60 Hertz, 600 Volt AC (Maximum)
Power Supply 240VAC@60HZ - 220VAC@50HZ
Product Description NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, open [TAA]
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Current 9 A
Rated Power In Hp 1.5 HP 200 V AC;1.5 HP 230 V AC;2 HP 460 V AC;2 HP 575 V AC
Reset Type THERMAL - MELTING ALLOY
Sccr Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC
Size 4.22 in;NEMA 00
Special Features Without pilot light
Standard UL LISTED - CSA CERTIFIED
Starter Type Non reversing
Sub Brand S
Thermal Overload Type Melting alloy 3
Type Motor starter;No control units;Full Voltage, Non-Reversing, Common Control Circuit
Type Of Overload Melting alloy 3
UNSPSC 39121521
UPC 78590177071
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width Metric 89.0 mm
