SQD 8536SBG2V08

NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, NEMA 1 [TAA]

Page Loading...
SQUARE-D/SCHNEIDER
NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, NEMA 1 [TAA]

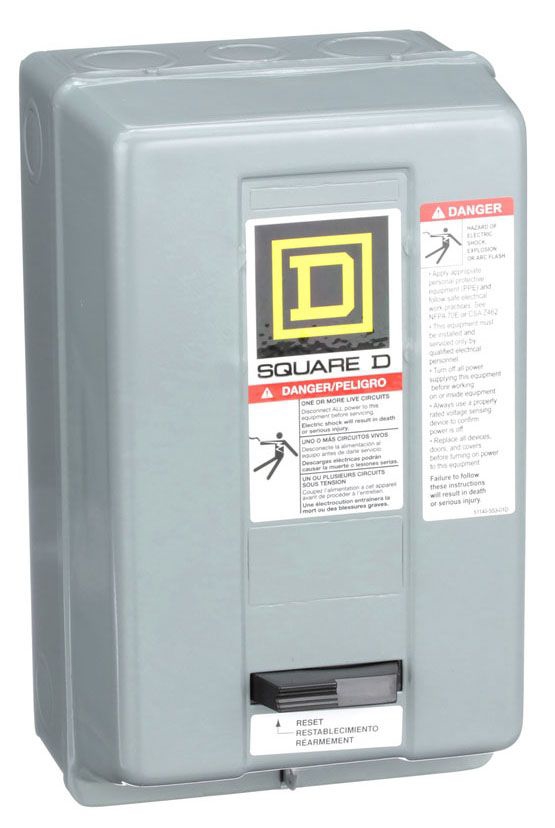

Mouse over image to zoom, click to enlarge

Description:
NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, NEMA 1 [TAA]

UPC:  78590178980

Part Number: 8536SBG2V08

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $518.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SBG2V08
Additional Information REACH Compliant; Overall Dimension 6 Inch Width x 5.56 Inch Depth x 10 Inch Height; Number of Poles 3; Enclosure Material Painted Sheet Steel; Terminal Type Screw Clamp; Approval UL, CSA
Base Price 0.0000
Catalog Number 8536SBG2V08
Coil Voltage 208 Volt AC 60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 18 Amp (Rated), 5 Kiloamp (SCCR)
DDCATEGORY 2116
Directory CIS
Enclosure Type NEMA 1
Families 2116
Family Description Nema Non-Combination Starters
Image Location * Image
Industry ELX
InvoiceDescription NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, NEMA 1 [TAA];STARTER 600VAC
Item Number 78980
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, COMMON CONTROL CIRCUIT TYPE; NEMA 0 SIZE; 18 AMP (RATED), 5 KILOAMP (SCCR) CURRENT RATING; NEMA 1 ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 208 VOLT AC 60 HERTZ COIL VOLTAGE
MSDS Form Number *
Model 8536
Noun *
Overloads Melting Alloy
Phase 3
Power Rating Voltage 3 HP at 200/230 Volt AC 50/60 Hertz, 5 HP at 460/575 Volt AC 50/60 Hertz, 600 Volt AC (Maximum)
Product Description NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 208VAC coil, NEMA 1 [TAA]
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Size NEMA 0
Type Full Voltage, Non-Reversing, Common Control Circuit
UNSPSC 39121521
UPC 78590178980
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8536SBG2V08
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
