SQD 8536SBO1V02

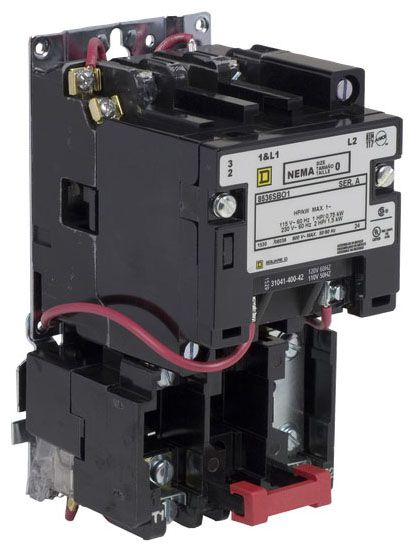

NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, open [TAA]

Page Loading...
SQUARE-D/SCHNEIDER
NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, open [TAA]

Mouse over image to zoom, click to enlarge

Description:
NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, open [TAA]

UPC:  78590108036

Part Number: 8536SBO1V02

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $435.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SBO1V02
Additional Information REACH Compliant; Overall Dimension 3.5 Inch Width x 4.22 Inch Depth x 6.81 Inch Height; Number of Poles 2; Terminal Type Screw Clamp; Approval UL, CSA
Base Price 0.0000
Catalog Number 8536SBO1V02
Coil Voltage 110/120 Volt AC 50/60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 18 Amp (Rated), 5 Kiloamp (SCCR)
DDCATEGORY 2116
Directory CIS
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 2 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 120 VAC coil, open [TAA];STARTER 600VAC
Item Number 08036
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, COMMON CONTROL CIRCUIT TYPE; NEMA 0 SIZE; 18 AMP (RATED), 5 KILOAMP (SCCR) CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 110/120 VOLT AC 50/60 HERTZ COIL VOLTAGE
MSDS Form Number *
Model 8536
Noun *
Overloads Melting Alloy
Phase 1
Power Rating Voltage 1 HP at 115 Volt AC 50/60 Hertz, 2 HP at 230 Volt AC 50/60 Hertz, 600 Volt AC (Maximum)
Product Description NEMA motor starter, Type S, nonreversing, Size 0, 18A, 2HP at 230VAC, 5kA SCCR, 1 phase, 2 pole, melting alloy, 120VAC coil, open [TAA]
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Size NEMA 0
Type Full Voltage, Non-Reversing, Common Control Circuit
UNSPSC 39121521
UPC 78590108036
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8536SBO1V02
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
