SQD 8536SBO2V02H308S

NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open

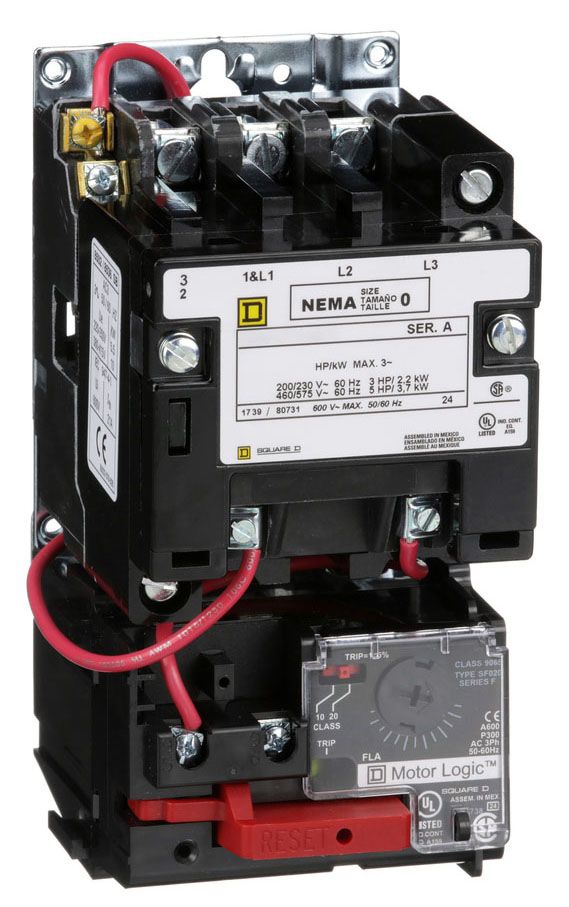

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open

UPC:  78590147063

Part Number: 8536SBO2V02H308S

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $578.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SBO2V02H308S
Additional Information Number of Poles 3; Approval UL, CSA
Amperage Rating 18 A
Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Auxiliary Contacts Without
Base Price 0.0000
Brand Name S
Catalog Number 8536SBO2V02H308S
Certifications CSA
Coil Voltage 110 V AC 50 Hz;120 V AC 60 Hz;110 VAC at 50 Hz, 120 VAC at 60 Hz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Circuit Type Separate control circuit
Control Units No control units
CountryOfOrigin MX
Current Rating 18 Ampere
DDCATEGORY 2116
Depth 4.22 in
Directory CIS
Enclosure OPEN
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Height 6.81 in
Horsepower Rating 3 HP 200 V AC;3 HP 230 V AC;5 HP 460 V AC;5 HP 575 V AC
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open;STARTER 600VAC
Item Number 47063
Long Description MAGNETIC STARTER, NON-REVERSING, FULL VOLTAGE TYPE; NEMA 0 SIZE; 18 AMPERE CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 110 VAC AT 50 HZ, 120 VAC AT 60 HZ COIL VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC
Motor Power 3HP@200/230VAC - 5HP@460/575VAC
Motor Starter Type Non reversing |
NEMA Size 0
Noun *
Number Of Phases 3 phase
Number Of Poles 3
Overloads Class 10/20 Solid State Motor Logic
Phase 3 phase;3
Pilot Light Without pilot light
Power Rating Voltage 600 VAC 3 HP at 200/230 VAC, 5 HP at 460/575 VAC
Power Supply 120VAC@60HZ - 110VAC@50HZ
Product Description NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open
Product Keywords WEBREADY
Product Name Motor starter controls
Product Range S
Product Type Motor starter
ProductLine SQD
Rated Current 18 A
Reset Type MOTOR LOGIC (CLASS 10/20)
Sccr Circuit-breaker 70A maximum: 100kA at 480 V AC;Fuse J 60A maximum: 100kA at 600 V AC;Fuse T 60A maximum: 100kA at 600 V AC;Fuse RK1 60A maximum: 100kA at 600 V AC;Fuse RK5 60A maximum: 100kA at 600 V AC
Size 0;NEMA 0
Special Features Without pilot light
Standard UL LISTED - CSA CERTIFIED
Starter Type Non reversing
Sub Brand S
Terminal Type Screw clamp terminals
Type Motor starter;No control units;Non-Reversing, Full Voltage
Type Of Overload Solid state Motor Logic class 10/20
UNSPSC 39121521
UPC 78590147063
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width 3.50 in

Resources

CatalogNumber 8536SBO2V02H308S
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
