| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 8536SCG3V06 |
| Additional Information | Overall Dimension 6 Inch Width x 5.56 Inch Depth x 10 Inch Height; Number of Poles 3; Enclosure Material Painted Sheet Steel; Terminal Type Screw Clamp; Approval UL, CSA, CE |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| Auxiliary Contact Composition | Without |
| Auxiliary Contacts | Without |
| Base Price | 0.0000 |
| Brand Name | S |
| Catalog Number | 8536SCG3V06 |
| Certifications | NEMA |
| Coil Voltage | 440 V AC 50 Hz;480 V AC 60 Hz;440/480 Volt AC 50/60 Hertz |
| Commerce Sector | Construction Materials |
| Commodity Code | 41350 |
| Commodity Description | Nema Non-Combination Starters |
| Connection | Screw clamp terminals |
| Construction Standard | NEMA |
| Control Circuit | Common control circuit |
| Control Circuit Type | Common control circuit NULL |
| CountryOfOrigin | MX |
| Current Rating | 27 Amp (Rated), 5 Kiloamp (SCCR) |
| DDCATEGORY | 2116 |
| Directory | CIS |
| Enclosure | NEMA 1 PAINTED SHEET STEEL |
| Enclosure Type | NEMA 1 |
| Families | 2116 |
| Family Description | Nema Non-Combination Starters |
| Height Metric | 254.0 mm |
| Horsepower Rating | 7.5 HP 200 V AC;7.5 HP 230 V AC;10 HP 460 V AC;10 HP 575 V AC NULL |
| Image Location | * Image |
| Industry | ELX |

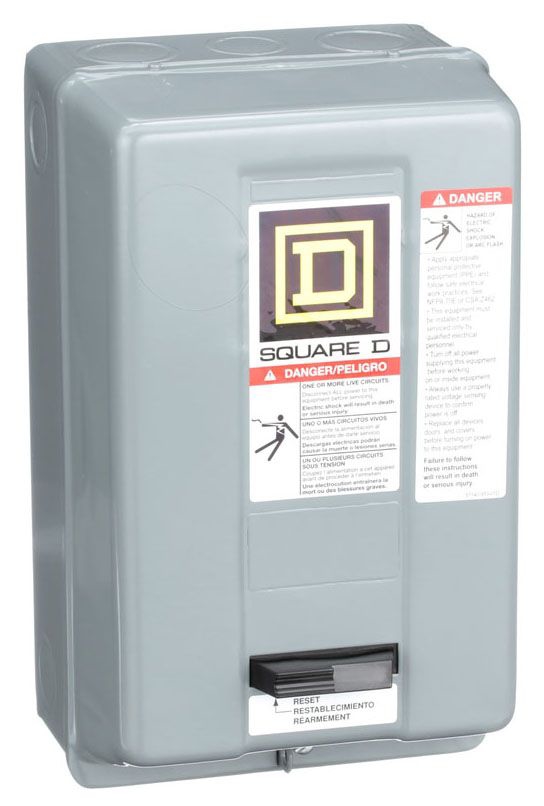

| InvoiceDescription | NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 480 VAC coil, NEMA 1;STARTER 600VAC |
| Item Number | 86471 |
| Line Rated Current Metric | 27.0 A |
| Long Description | MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, COMMON CONTROL CIRCUIT TYPE; NEMA 1 SIZE; 27 AMP (RATED), 5 KILOAMP (SCCR) CURRENT RATING; NEMA 1 ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 440/480 VOLT AC 50/60 HERTZ COIL VOLTAGE |
| MSDS Form Number | * |
| Maximum Voltage Rating | 600 V AC NULL |
| Model | 8536 |
| Motor Power | 7.5HP@200/230VAC - 10HP@460/575VAC |
| Motor Starter Type | Non reversing |
| NEMA Size | 1 |
| Noun | * |
| Number Of Phases | 3 phase |
| Number Of Poles | 3 |
| Overloads | Melting Alloy |
| Phase | 3 PHASES;3 |
| Pilot Light | Without pilot light |
| Power Rating Voltage | 7.5 HP at 200/230 Volt AC 50/60 Hertz, 10 HP at 460/575 Volt AC 50/60 Hertz, 600 Volt AC (Maximum) |
| Power Supply | 480VAC@60HZ - 440VAC@50HZ |
| Product Description | NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 480VAC coil, NEMA 1 |
| Product Keywords | WEBREADY |
| Product Name | Motor starter controls |
| ProductLine | SQD |
| Rated Current | 27 A |
| Rated Power In Hp | 7.5 HP 200 V AC;7.5 HP 230 V AC;10 HP 460 V AC;10 HP 575 V AC |
| Reset Type | MELTING ALLOY 3 THERMAL UNITS |
| Sccr | Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC |
| Size | 5.56 in;NEMA 1 |
| Special Features | Without pilot light |
| Standard | NEMA-UL LISTED-CSA |
| Starter Type | Non reversing |
| Sub Brand | S |
| Thermal Overload Type | Melting alloy 3 |
| Type | Motor starter;No control units;Full Voltage, Non-Reversing, Common Control Circuit |
| Type Of Overload | Melting alloy 3 |
| UNSPSC | 39121521 |
| UPC | 78590186471 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC |
| Width Metric | 152.0 mm| |
