SQD 8536SCO1V03

NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 3 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 3 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

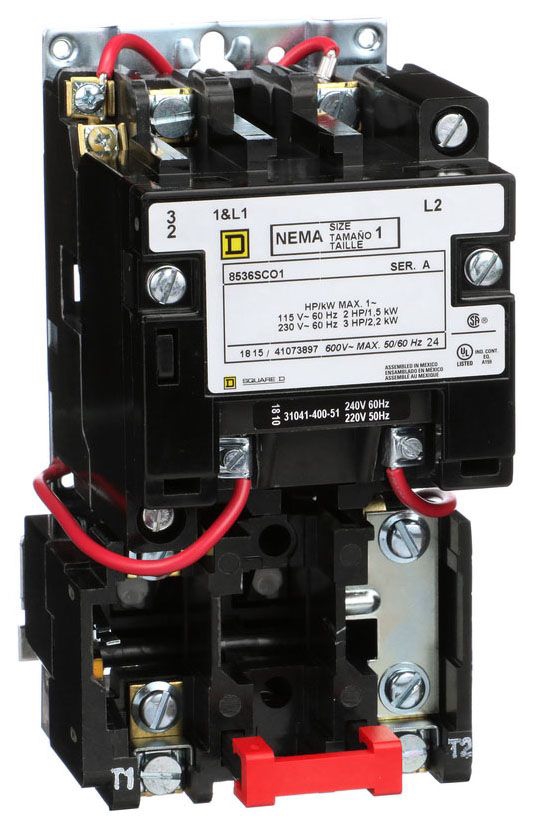

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 3 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

UPC:  78590108027

Part Number: 8536SCO1V03

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $507.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SCO1V03
Additional Information Overall Dimension 3.5 Inch Width x 4.22 Inch Depth x 6.81 Inch Height; Number of Poles 2; Terminal Type Screw Clamp; Approval UL, CSA
Amperage Rating 27 A
Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Auxiliary Contact Composition Without
Auxiliary Contacts Without
Base Price 0.0000
Brand Name S
Catalog Number 8536SCO1V03
Certifications UL Listed
Coil Voltage 220 V AC 50 Hz;240 V AC 60 Hz;220/240 Volt AC 50/60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Circuit Common control circuit
Control Circuit Type Common control circuit
CountryOfOrigin MX
Current Rating 27 Amp, 5 Kiloamp (SCCR)
DDCATEGORY 2116
Directory CIS
Enclosure OPEN
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Height Metric 172.0 mm
Horsepower Rating 3 HP 230 V AC;2 HP 115 V AC
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 3 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open;STARTER 600VAC
Item Number 08027
Line Rated Current Metric 27.0 A
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, COMMON CONTROL CIRCUIT TYPE; NEMA 1 SIZE; 27 AMP, 5 KILOAMP (SCCR) CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 220/240 VOLT AC 50/60 HERTZ COIL VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC
Model 8536
Motor Power 2HP@115VAC - 3HP@230VAC
Motor Starter Type Non reversing
NEMA Size 1
Noun *
Number Of Phases 1 phase
Number Of Poles 2
Overloads Melting Alloy
Phase 1-PHASE;1
Pilot Light Without pilot light
Power Rating Voltage 2 HP at 115 Volt AC 50/60 Hertz, 3 HP at 230 Volt AC 50/60 Hertz, 600 Volt AC (Maximum)
Power Supply 240VAC@60HZ - 220VAC@50HZ
Product Description NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 3 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Current 27 A
Rated Power In Hp 3 HP 230 V AC;2 HP 115 V AC
Reset Type THERMAL - MELTING ALLOY
Sccr Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC
Size 4.22 in;NEMA 1
Special Features Without pilot light
Standard UL LISTED - CSA CERTIFIED
Starter Type Non reversing
Sub Brand S
Thermal Overload Type Melting alloy 1
Type Motor starter;No control units;Full Voltage, Non-Reversing, Common Control Circuit
Type Of Overload Melting alloy 1
UNSPSC 39121521
UPC 78590108027
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width Metric 89.0 mm|
