SQD 8536SDO1V02H30S

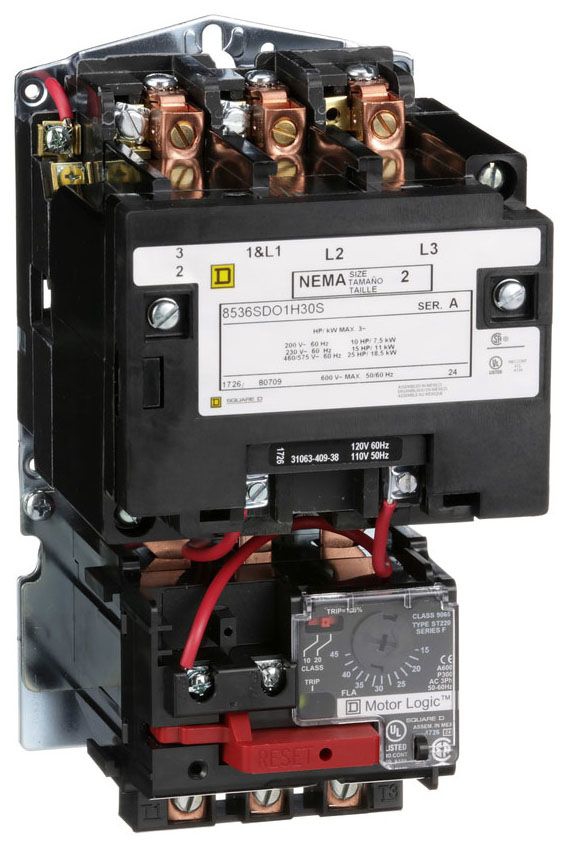

NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]

Page Loading...
SQUARE-D/SCHNEIDER
NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]

Mouse over image to zoom, click to enlarge

Description:
NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]

UPC:  78590180709

Part Number: 8536SDO1V02H30S

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $1,115.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SDO1V02H30S
Additional Information APPROVAL UL, CSA, CE; NUMBER OF POLES 3; WITH SEPARATE CONTROL CIRCUIT
Base Price 0.0000
Catalog Number 8536SDO1V02H30S
Coil Voltage 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 45 Amp
DDCATEGORY 2116
Directory CIS
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Image Location * Image
Industry ELX
InvoiceDescription NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA];STARTER 600VAC
Item Number 80709
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING TYPE; NEMA 2 SIZE; 45 AMP CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 120 VOLT AC AT 60 HERTZ, 110 VOLT AC AT 50 HERTZ COIL VOLTAGE
MSDS Form Number *
Model 8536S
Noun *
Overloads Solid State Motor Logic Class 10/20
Phase 3
Power Rating Voltage 10 HP at 200 Volt AC, 15 HP at 230 Volt AC, 25 HP at 460/575 Volt AC
Product Description NEMA motor starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Size NEMA 2
Type Full Voltage, Non-Reversing
UNSPSC 39121521
UPC 78590180709
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8536SDO1V02H30S
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
