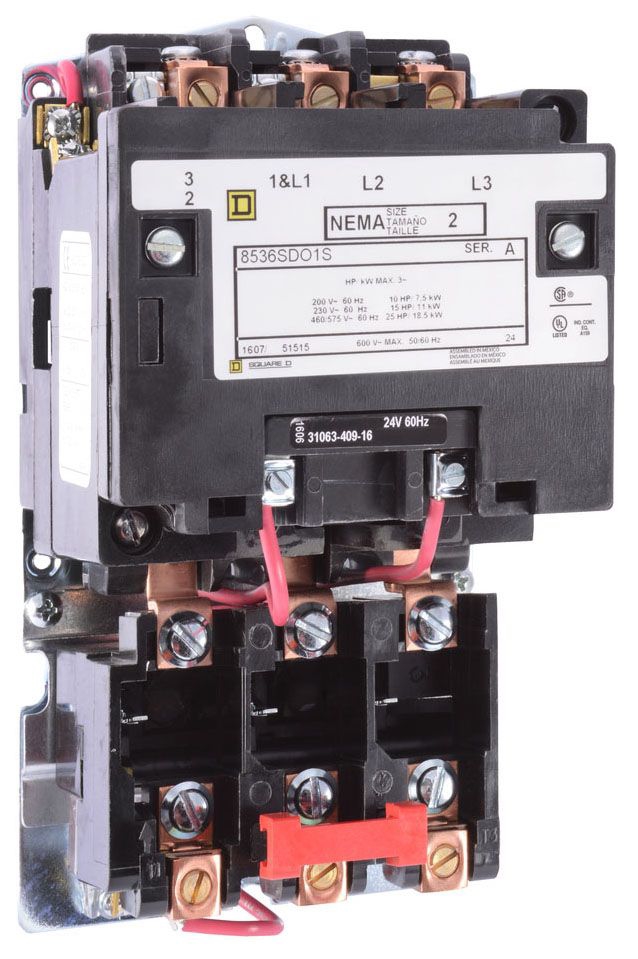

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 120 VAC coil, open

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 120 VAC coil, open

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 120 VAC coil, open

UPC:  78590145538

Part Number: 8536SDO2V02S

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $1,283.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SDO2V02S
Additional Information RoHS/REACH Compliant; Overall Dimension 5.63 Inch Width x 4.94 Inch Depth x 7.81 Inch Height; Number of Poles 4; Terminal Type Screw Clamp; Approval UL, CSA
Amperage Rating 45 A
Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Auxiliary Contact Composition Without
Auxiliary Contacts Without
Base Price 0.0000
Brand Name S
Catalog Number 8536SDO2V02S
Certifications UL Listed
Coil Voltage 110 V AC 50 Hz;120 V AC 60 Hz;110/120 Volt AC 50/60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Circuit Separate control circuit
Control Circuit Type Separate control circuit NULL
CountryOfOrigin MX
Current Rating 45 Amp (Rated), 5 Kiloamp (SCCR)
DDCATEGORY 2116
Directory CIS
Enclosure OPEN
Enclosure Type Open
Families 2116
Family Description Nema Non-Combination Starters
Height Metric 198.0 mm
Horsepower Rating 10 HP 200 V AC;15 HP 230 V AC;25 HP 460 V AC;25 HP 575 V AC NULL
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 120 VAC coil, open;STARTER 600VAC
Item Number 45538
Line Rated Current Metric 45.0 A
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, SEPARATE CONTROL CIRCUIT TYPE; NEMA 2 SIZE; 45 AMP (RATED), 5 KILOAMP (SCCR) CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 110/120 VOLT AC 50/60 HERTZ COIL VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC NULL
Model 8536
Motor Power 10HP@200VAC - 15HP@230VAC - 25HP@460/575VAC
Motor Starter Type Non reversing
NEMA Size 2
Noun *
Number Of Phases 2 phases
Number Of Poles 4
Overloads Melting Alloy
Phase 3-PHASE;2
Pilot Light Without pilot light
Power Rating Voltage 10 HP at 200 Volt AC 50/60 Hertz, 15 HP at 230 Volt AC 50/60 Hertz, 25 HP at 460/575 Volt AC 50/60 Hertz, 600 Volt AC (Maximum)
Power Supply 120VAC@60HZ - 110VAC@50HZ
Product Description NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 2 phase, 4 pole, melting alloy, 120 VAC coil, open
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Current 45 A
Rated Power In Hp 10 HP 200 V AC;15 HP 230 V AC;25 HP 460 V AC;25 HP 575 V AC
Reset Type THERMAL - MELTING ALLOY
Sccr Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC
Size 4.94 in;NEMA 2
Special Features Without pilot light
Standard UL LISTED - CSA CERTIFIED
Starter Type Non reversing
Sub Brand S
Thermal Overload Type Melting alloy 2
Type Motor starter;No control units;Full Voltage, Non-Reversing, Separate Control Circuit
Type Of Overload Melting alloy 2
UNSPSC 39121521
UPC 78590145538
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width Metric 143.0 mm|
