NEMA Motor Starter, Type S, nonreversing, extra capacity, 10 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, extra capacity, 10 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

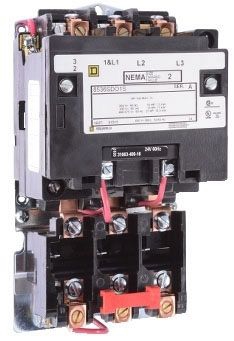

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, extra capacity, 10 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open

UPC:  78590101939

Part Number: 8536SDO8V03

UNSPSC: 39121521

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SDO8V03
Additional Information APPROVAL UL, CSA, CE; NUMBER OF POLES 2
Auxiliary Contact Composition Without
Auxiliary Contacts Without
Base Price 0.0000
Catalog Number 8536SDO8V03
Coil Voltage 220 V AC 50 Hz;240 V AC 60 Hz;220 VAC AT 50 HZ, 240 VAC AT 60 HZ
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Construction Standard NEMA
Control Circuit Common control circuit
Control Circuit Type Common control circuit
Control Circuit Voltage 220 V AC 50 Hz;240 V AC 60 Hz
Control Type No control units
Control Units No control units
CountryOfOrigin MX
Current Rating 56 AMPERE
DDCATEGORY 2116
Depth 4.94 in
Depth Metric 125.0 mm
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure Type OPEN
Families 2116
Family Description Nema Non-Combination Starters
Height 7.81 in
Height Metric 198.0 mm
Horsepower Rating 5 HP 115 V AC;10 HP 230 V AC
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, extra capacity, 10 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open;STARTER 600VAC 56A
Item Number 01939
Line Rated Current Metric 45.0 A
Local Signalling Without pilot light
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON REVERSING TYPE; 56 AMPERE CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 220 VAC AT 50 HZ, 240 VAC AT 60 HZ COIL VOLTAGE; 5 HP AT 115 VAC 50/60 HZ, 10 HP AT 230 VAC 50/60 HZ POWER RATING/VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC
Model 8536
Motor Starter Type Non reversing
NEMA Size 2
Noun *
Number Of Poles 2
Overloads MELTING ALLOY THERMAL OVERLOAD RELAY
Phase 1
Pilot Light Without pilot light
Poles Description 2 P
Power Rating Voltage 5 HP AT 115 VAC 50/60 HZ, 10 HP AT 230 VAC 50/60 HZ
Product Description NEMA Motor Starter, Type S, nonreversing, extra capacity, 10 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 240 VAC coil, open
Product Keywords WEBREADY
Product Name Motor starter controls
Product Or Component Type Motor starter
Product Range S
Product Type Motor starter
ProductLine SQD
Range Of Product S
Rated Current 45 A
Rated Operational Voltage 600 V AC |
Rated Power In Hp 5 HP 115 V AC;10 HP 230 V AC
Sccr Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC
Starter Type Non reversing
Terminal Type Screw clamp terminals
Thermal Overload Type Melting alloy 3
Type FULL VOLTAGE, NON REVERSING
Type Of Overload Melting alloy 1
UNSPSC 39121521
UPC 78590101939
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 4.31 in
Width Metric 109.0 mm
