NEMA Motor Starter, Type S, nonreversing, Size 3, 90A, 50 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Motor Starter, Type S, nonreversing, Size 3, 90A, 50 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1

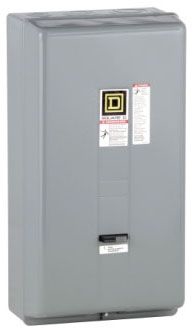

Mouse over image to zoom, click to enlarge

Description:
NEMA Motor Starter, Type S, nonreversing, Size 3, 90A, 50 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1

UPC:  78590111698

Part Number: 8536SEG1V01S

UNSPSC: 39121521

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8536SEG1V01S
Additional Information Overall Dimension 11.44 Inch Width x 8.38 Inch Depth x 21.81 Inch Height; Number of Poles 3; Enclosure Material Painted Sheet Steel; Terminal Type Screw Clamp; Approval UL, CSA
Amperage Rating 90 A
Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Auxiliary Contact Composition Without
Auxiliary Contacts Without
Base Price 0.0000
Brand Name S
Catalog Number 8536SEG1V01S
Certifications CSA
Coil Voltage 24@50/60Hz V;24 Volt AC 60 Hertz
Commerce Sector Construction Materials
Commodity Code 41350
Commodity Description Nema Non-Combination Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Circuit Separate control circuit
Control Circuit Type Separate control circuit NULL
CountryOfOrigin MX
Current Rating 90 Amp, 5 Kiloamp (SCCR)
DDCATEGORY 2116
Directory CIS
Enclosure NEMA 1
Enclosure Type NEMA 1
Families 2116
Family Description Nema Non-Combination Starters
Height Metric 554.0 mm
Horsepower Rating 25 HP 200 V AC;30 HP 230 V AC;50 HP 460 V AC;50 HP 575 V AC
Image Location * Image
Industry ELX
InvoiceDescription NEMA Motor Starter, Type S, nonreversing, Size 3, 90A, 50 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1;STARTER 600VAC
Item Number 11698
Line Rated Current Metric 90.0 A
Long Description MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, SEPARATE CONTROL CIRCUIT TYPE; NEMA 3 SIZE; 90 AMP, 5 KILOAMP (SCCR) CURRENT RATING; NEMA 1 ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 24 VOLT AC 60 HERTZ COIL VOLTAGE
MSDS Form Number *
Maximum Voltage Rating 600 V AC
Model 8536
Motor Power 25HP@200VAC - 30HP@230VAC - 50HP@460/575VAC
Motor Starter Type Non reversing
NEMA Size 3
Noun *
Number Of Phases 3 phase
Number Of Poles 3
Overloads Melting Alloy
Phase 3-PHASE;3
Pilot Light Without pilot light
Power Rating Voltage 25 HP at 200 Volt AC, 30 HP at 230 Volt AC, 50 HP at 460/575 Volt AC, 600 Volt AC (Maximum)
Power Supply 24VAC@60HZ
Product Description NEMA Motor Starter, Type S, nonreversing, Size 3, 90A, 50 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Current 90 A
Rated Power In Hp 25 HP 200 V AC;30 HP 230 V AC;50 HP 460 V AC;50 HP 575 V AC
Reset Type THERMAL - MELTING ALLOY
Sccr Circuit-breaker: 5kA at 600 V AC;Fuse: 5kA at 600 V AC
Size 8.38 in;NEMA 3
Special Features Without pilot light
Standard UL LISTED - CSA CERTIFIED
Starter Type Non reversing
Sub Brand S
Thermal Overload Type Melting alloy 3
Type Motor starter;No control units;Full Voltage, Non-Reversing, Separate Control Circuit
Type Of Overload Melting alloy 3
UNSPSC 39121521
UPC 78590111698
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
