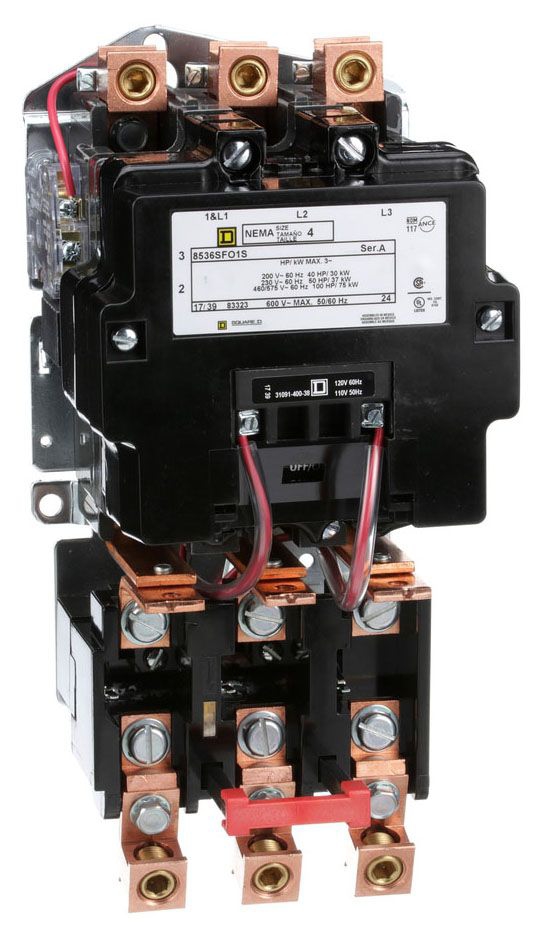

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 8536SFO1V02S |
| Additional Information | REACH Compliant; Overall Dimension 6 Inch Width x 6.5 Inch Depth x 12.88 Inch Height; Number of Poles 3; Terminal Type Screw Clamp; Approval UL, CSA |
| Amperage Rating | 135 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| Auxiliary Contact Composition | Without |
| Auxiliary Contacts | Without |
| Base Price | 0.0000 |
| Brand Name | S |
| Catalog Number | 8536SFO1V02S |
| Certifications | CSA |
| Coil Voltage | 110 V AC 50 Hz;120 V AC 60 Hz;110/120 Volt AC 50/60 Hertz |
| Commerce Sector | Construction Materials |
| Commodity Code | 41350 |
| Commodity Description | Nema Non-Combination Starters |
| Connection | Screw clamp terminals |
| Construction Standard | NEMA |
| Control Circuit | Separate control circuit |
| Control Circuit Type | Separate control circuit NULL |
| CountryOfOrigin | MX |
| Current Rating | 135 Amp (Rated), 10 Kiloamp (SCCR) |
| DDCATEGORY | 2116 |
| Directory | CIS |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| Families | 2116 |
| Family Description | Nema Non-Combination Starters |
| Height Metric | 327.0 mm |
| Horsepower Rating | 40 HP 200 V AC;50 HP 230 V AC;100 HP 460 V AC;100 HP 575 V AC NULL |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | NEMA Motor Starter, Type S, nonreversing, Size 4, 135A, 100 HP at 460 VAC, 3 phase, 3 pole, melting alloy, 120 VAC coil, open, 10 kA SSCR;STARTER 600VAC |
| Item Number | 83323 |
| Line Rated Current Metric | 135.0 A |
| Long Description | MAGNETIC STARTER, FULL VOLTAGE, NON-REVERSING, SEPARATE CONTROL CIRCUIT TYPE; NEMA 4 SIZE; 135 AMP (RATED), 10 KILOAMP (SCCR) CURRENT RATING; OPEN ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 110/120 VOLT AC 50/60 HERTZ COIL VOLTAGE |
| MSDS Form Number | * |
| Maximum Voltage Rating | 600 V AC NULL |
| Model | 8536 |
| Motor Power | 40HP@200VAC - 50HP@230VAC - 100HP@460/575VAC |
| Motor Starter Type | Non reversing |
| NEMA Size | 4 |
| Noun | * |
| Number Of Phases | 3 phase |
| Number Of Poles | 3 |
| Overloads | Melting Alloy |
| Phase | 3 PHASES;3 |
| Pilot Light | Without pilot light |
| Power Rating Voltage | 40 HP at 200 Volt AC, 50 HP at 230 Volt AC, 100 HP at 460/575 Volt AC, 600 Volt AC (Maximum) |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Product Description | NEMA motor starter, Type S, nonreversing, Size 4, 135A, 100HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open |
| Product Keywords | WEBREADY |
| Product Name | Motor starter controls |
| ProductLine | SQD |
| Rated Current | 135 A |
| Rated Power In Hp | 40 HP 200 V AC;50 HP 230 V AC;100 HP 460 V AC;100 HP 575 V AC |
| Reset Type | MELTING ALLOY 3 THERMAL UNITS |
| Sccr | Circuit-breaker: 10kA at 600 V AC;Fuse: 10kA at 600 V AC |
| Size | 6.50 in;NEMA 4 |
| Special Features | Without pilot light |
| Standard | UL LISTED-NEMA-CSA |
| Starter Type | Non reversing |
| Sub Brand | S |
| Thermal Overload Type | Melting alloy 3 |
| Type | Motor starter;No control units;Full Voltage, Non-Reversing, Separate Control Circuit |
| Type Of Overload | Melting alloy 3 |
| UNSPSC | 39121521 |
| UPC | 78590183323 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC |
| Width Metric | 152.0 mm| |
