| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 8910DPA43V02 |
| Additional Information | Locked Rotor Rating 240 Amp at 230 Volt AC, 200 Amp at 460 Volt AC, 160 Amp at 575 Volt AC; Application Heating, Air Conditioning, Refrigeration, Data Processing, Food Service Equipment |
| Amperage | 40 A |
| Application | IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| Approval | UL, CSA, CE |
| Auxiliary Contact | 3NO |
| Base Price | 0.0000 |
| Brand Name | DPA |
| Catalog Number | 8910DPA43V02 |
| Coil Voltage | 120 V AC 60 Hz;110 V AC 50 Hz;110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz |
| Commerce Sector | Construction Materials |
| Commodity Code | 41110 |
| Commodity Description | Definite Purpose Contactors |
| Connection | Quick connect terminals;box lugs |
| Contact Configuration | 3 NO |
| Contact Rating | 40 A |
| CountryOfOrigin | CN |
| Current Rating | 40 Amp |
| DDCATEGORY | 2102 |
| Depth | 2.9 in |
| Directory | CIS |
| Enclosure | Open |
| Families | 2102 |
| Family Description | Definite Purpose Contactors |
| Height | 2.31 in |

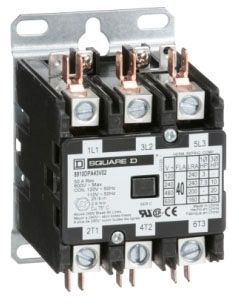

| Image Location | * Image |
| In Rated Current | 40 A |
| Industry | ELX |
| InvoiceDescription | Contactor, Definite Purpose, 40A, 3 pole, 25 HP at 575VAC, 3 phase, 110/120VAC coil at 50/60Hz, open;CONTACTOR 600VAC |
| Item Number | 07344 |
| Line Rated Current Metric | 40.0 A |
| Locked Rotor Rated Current | 240 A 277 V AC;200 A 460 V AC;160 A 575 V AC |
| Long Description | DEFINITE PURPOSE CONTACTOR, UL, CSA, CE APPROVAL; OPEN ENCLOSURE; 40 AMP CURRENT RATING; 3 POLE(S); 110 VOLT AC AT 50 HERTZ, 120 VOLT AC AT 60 HERTZ COIL VOLTAGE; 3NO AUXILIARY CONTACT |
| MSDS Form Number | * |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase;7.5-7.5 hp 230 V AC, 1 phase;10-10 hp 230 V AC, 3 phase;20-20 hp 460 V AC, 3 phase;25-25 hp 575 V AC, 3 phase |
| Maximum Load Current | 240 A 277 V AC-200 A 460 V AC-160 A 575 V AC |
| Model | 8910DPA |
| Motor Power Hp | 3hp 115 V AC, 1 phase;7.5hp 230 V AC, 1 phase;10hp 230 V AC, 3 phase;20hp 460 V AC, 3 phase;25hp 575 V AC, 3 phase |
| Mounting | PANEL |
| Net Weight Metric | 0.45 kg |
| Noun | * |
| Number Of Poles | 3 |
| Phase | 3 |
| Poles Description | 3 P |
| Power Rating Voltage | 3 HP at 115 Volt AC, 7.5 HP at 230 Volt AC 1-Phase, 10 HP at 230 Volt AC, 20 HP at 460 Volt AC, 25 HP at 575 Volt AC 3-Phase |
| Product Description | Contactor, Definite Purpose, 40A, 3 pole, 25HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open |
| Product Keywords | WEBREADY |
| Product Name | Contactors |
| Product Weight | 0.99 lb |
| ProductLine | SQD |
| Rated Operational Voltage | 600 V AC |
| Resistive Ampere | 50 Amp |
| Size | 2.90 in |
| Special Features | 3-3 HP 115 V AC, 1 PHASE-7.5-7.5 HP 230 V AC, 1 PHASE-10-10 HP 230 V AC, 3 PHASE-20-20 HP 460 V AC, 3 PHASE-25-25 HP 575 V AC, 3 PHASE |
| Standard | UL RECOGNIZED-CSA |
| Sub Brand | DPA |
| Type | Definite Purpose Contactor |
| UNSPSC | 39121529 |
| UPC | 78590107344 |
| Uc Control Circuit Voltage | 120 V AC 60 Hz;110 V AC 50 Hz |
| Ue Rated Operational Voltage | 600 V AC |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Width | 2.37 in |
