SQD 9001BG209

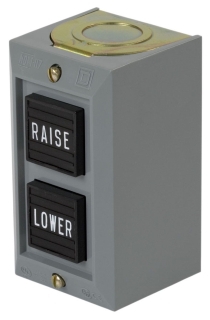

Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1

Page Loading...
SQUARE-D/SCHNEIDER
Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1

Mouse over image to zoom, click to enlarge

Description:
Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1

UPC:  78590185737

Part Number: 9001BG209

UNSPSC: 39121565

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001BG209
Action 2 NO
Additional Information TERMINAL TYPE SCREW CLAMP
Amperage Rating 5 A 600 V, AC
Application Two functions
Approval UL 508, CSA C22.2, CE
Base Price 0.0000
Brand Name Harmony 9001B;Harmony[R]
Cable Conduit Entry 1/2 TO 3/4 INCH KNOCKOUT
Catalog Number 9001BG209
Colour Of Base Of Enclosure Grey
Commerce Sector Construction Materials
Commodity Code 42310
Commodity Description Control Station Complete Assemblies
Connection SCREW CLAMP
Contact Configuration 2NO
Contact Rating 600 VAC/VDC 5 AMPERE
Control Output 2 NO
Control Station Composition 2 push-buttons, white RAISE-LOWER
CountryOfOrigin MX
DDCATEGORY 2161
Device Mounting Surface
Directory CIS
Enclosure NEMA 1
Environmental Conditions Indoor
Families 2161
Family Description Control Station Complete Assemblies
Ie Rated Operational Current 5A 600 V, AC
Image Location * Image
Industry ELX
Interface 2 push-buttons, white RAISE-LOWER
InvoiceDescription Push button, Type B, standard duty control station, 5A, 600 VAC, RAISE/LOWER, NEMA 1;CONTROL STATION
Item Number 85737
Legend RAISE-LOWER
Long Description CONTROL STATION, PUSHBUTTON TYPE; PLASTIC COVER MATERIAL; 2NO CONTACT CONFIGURATION; 600 VAC/VDC 5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; SURFACE MOUNTING; NEMA 1 ENCLOSURE; RAISE-LOWER LEGEND; MOMENTARY OPERATOR TYPE; 2 ELEMENT(S)
MSDS Form Number *
Marking CE
Material Cast zinc;PLASTIC COVER
Mechanical Durability 5000000.0
Model 9001B
Mounting SURFACE
Noun *
Number Of Elements 2
Operating Temperature -25-70 AC
Operator Type MOMENTARY
Product Description Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1
Product Keywords WEBREADY
Product Name Surface mount control station
ProductLine SQD
Rated Operational Current 5 A 600 V, AC
Special Features 2 NO,GREY
Standard NEMA 1,UL LISTED FILE E42259 CCN NKCR-CSA LR25490 CLASS 3211 03
Sub Brand 9001BG
Type Complete control station;PUSHBUTTON
Type Of Operator momentary
UNSPSC 39121565
UPC 78590185737
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V

Resources

CatalogNumber 9001BG209
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
