SQD 9001KR1RH13

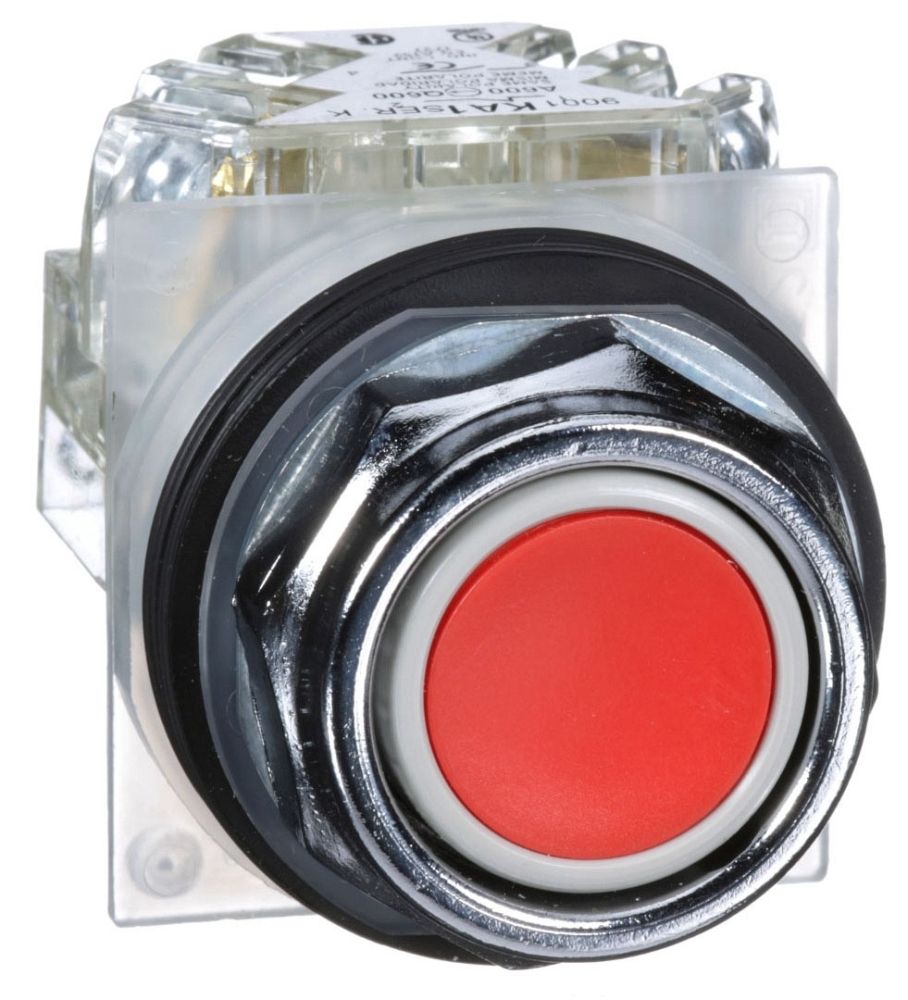

30mm Push Button, Type K, push button, full guard, red, 1 NO and 1 NC

Page Loading...
SQUARE-D/SCHNEIDER
30mm Push Button, Type K, push button, full guard, red, 1 NO and 1 NC

Mouse over image to zoom, click to enlarge

Description:
30mm Push Button, Type K, push button, full guard, red, 1 NO and 1 NC

UPC:  78590106681

Part Number: 9001KR1RH13

UNSPSC: 39122216

Status:  UNKNOWN

Your Price:  $89.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001KR1RH13
Action Standard
Actuator spring return;Red flush, unmarked;Flush;Spring return
Amperage Rating 10 A
Base Price 0.0000
Brand Name Harmony 9001K
Cad Overall Depth Metric 56.0 mm
Cad Overall Width Metric 48.0 mm
Connection Screw clamp terminals 1 x 0.22...2 x 1.5 mm IEC 60947-1
Connections Terminals Screw clamp terminals 1 x 0.22...2 x 1.5 mm IEC 60947-1
Contact Configuration 1 C/O
Contact Rating AC15 - DC13
Contacts Material Silver alloy contacts |
CountryOfOrigin MX
DDCATEGORY 2152
Enclosure NEMA 1/2/3/3R/4/6/12/13
Environmental Conditions WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
Families 2152
Family Description Push Button Complete Assemblies
Icm Rated Sc Making Cap 12kA 600 V AC-15, 7200VA;15kA 480 V AC-15, 7200VA;30kA 240 V AC-15, 7200VA;60kA 120 V AC-15, 7200VA;0.1kA 600 V DC-13;0.27kA 250 V DC-13;0.55kA 125 V DC-13
Ie Rated Operational Current 3A 240 V, AC-15, A600-Q600 NEMA;0.55A 125 V, DC-13, A600-Q600 NEMA
Indicator RED
Insulation 250 V 3)IEC 60947-1
InvoiceDescription 30mm Push Button, Type K, push button, full guard, red, 1 NO and 1 NC
Ith Cnvtl Free Air Therm Crrt 10 A
Material Metal
Mounting PANEL
Operating Temperature -25-70 AC
Operator Additional Information Metal guard
Operator Profile Red flush, unmarked
Positive Opening Without
Product Description 30mm Push Button, Type K, push button, full guard, red, 1 NO and 1 NC
Product Keywords WEBREADY
Product Name Push button switch
ProductLine SQD
Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA;6 kA 120 V AC-15, 720 VA;1.2 kA 600 V AC-15, 720 VA;1.5 kA 480 V AC-15, 720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
Shape Of Screw Head Cross slotted
Short Circuit Protection 10 A cartridge fuse IEC 60947-5-1
Special Features FULL GUARD IN PLASTIC
Standard UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED
Terminals Description Iso N1 (13-14-11-12)OF
Tightening Torque 0.8-0.8 N.m IEC 60947-1
Type Push-button
Type Of Operator spring return
UNSPSC 39122216
UPC 78590106681
Ui Rated Insulation Voltage 250V 3)IEC 60947-1
Uimp Rated Imp Wstd Voltage 2.5kV IEC 60947-1
Voltage Rating 600 V

Resources

CatalogNumber 9001KR1RH13
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
