| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9001KR9RH13 |
| Base Price | 0.0000 |
| Brand Name | Harmony 9001K |
| Cad Overall Depth | 2.91 in |
| Cad Overall Height | 1.77 in |
| Cad Overall Height Metric | 45.0 mm |
| Cad Overall Width | 1.81 in |
| Connections Terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm EN/IEC 60947-1 |
| Contacts Material | Silver alloy contacts |
| Contacts Type And Composition | 1 C/O | |
| Conventional Free Air Thermal Current Metric | 10 A |
| CountryOfOrigin | MX |
| DDCATEGORY | 2152 |
| Device Presentation | Complete product |
| Device Short Name Metric | 9001 K |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Head Material | Plastic |
| Icm Rated Sc Making Cap | 12kA 600 V AC-15, 7200VA;15kA 480 V AC-15, 7200VA;30kA 240 V AC-15, 7200VA;0.1kA 600 V DC-13;0.27kA 250 V DC-13;0.55kA 125 V DC-13 |
| Ie Rated Operational Current | 3A 240 V, AC-15, A600-Q600 NEMA;0.55A 125 V, DC-13, A600-Q600 NEMA |
| Insulation | 250 V 3)EN/IEC 60947-1 |

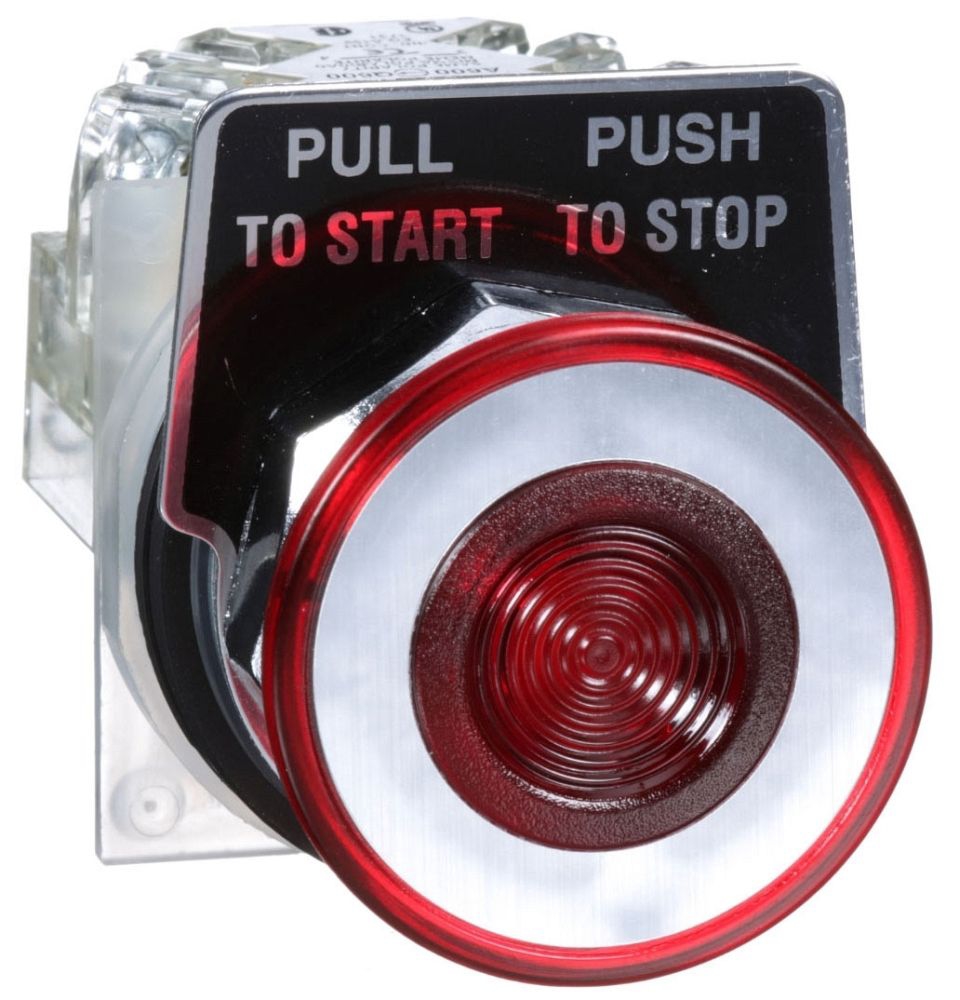

| InvoiceDescription | 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC |
| Ith Cnvtl Free Air Therm Crrt | 10 A |
| Mounting | PANEL |
| Mounting Diameter | 1.18 in |
| Mounting Diameter Metric | 30.0 mm |
| Net Weight Metric | 0.141 kg |
| Operator Additional Information | Screw-on plastic |
| Operator Profile | Red mushroom 41 mm, unmarked;Mushroom 41 mm |
| Positive Opening | Without |
| Product Description | 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| Product Weight | 0.31 lb |
| ProductLine | SQD |
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA;6 kA 120 V AC-15, 720 VA;1.2 kA 600 V AC-15, 720 VA;1.5 kA 480 V AC-15, 720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13 |
| Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Rated Short Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA;15 kA 480 V AC-15, 7200 VA;30 kA 240 V AC-15, 7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13 |
| Shape Of Signaling Unit Head | Round |
| Short Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Special Features | SCREW-ON PLASTIC MUSHROOM |
| Standard | UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED |
| Sub Brand | HARMONY |
| Type | Push-button |
| Type Of Operator | push-pull;Push-pull |
| UNSPSC | 39122216 |
| UPC | 78590182109 |
| Ui Rated Insulation Voltage | 250V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 2.5kV EN/IEC 60947-1 |
