SQD 9001KS11K1R

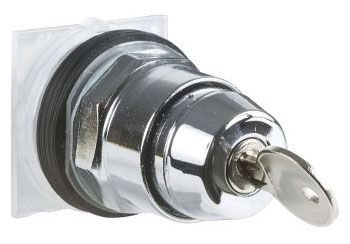

Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key 455, 2 positions, stay put

Page Loading...
SQUARE-D/SCHNEIDER
Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key 455, 2 positions, stay put

Mouse over image to zoom, click to enlarge

Description:
Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key 455, 2 positions, stay put

UPC:  78590183127

Part Number: 9001KS11K1R

UNSPSC: 39122216

Status:  UNKNOWN

Your Price:  $138.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001KS11K1R
Action STAY PUT
Actuator 2 POSITIONS,KEY SWITCH,STAY PUT
Application 9001KA1 SIDE 1 OR 2-9001KA2 SIDE 1 OR 2
Base Price 0.0000
Bezel Material Metal
Brand Name HARMONY 9001KS
Cam Profile 5.0
Contact Configuration WITHOUT CONTACT BLOCK
Contacts Type And Composition Without contact block
CountryOfOrigin MX
DDCATEGORY 2157
Device Presentation Basic element
Device Short Name Metric 9001 K
Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4
Families 2157
Family Description Selector Switch Components
InvoiceDescription SELECTOR SWITCH OPERATOR 30MM T-K
Key Number 455
Key Withdrawal Position Left
Mechanical Durability 500000.0
Mounting Diameter Metric 30.0 mm
Net Weight Metric 0.207 kg
Operating Temperature -25-70 AC
Operator Position Information 2 positions
Operator Profile key switch;Key switch
Product Compatibility 9001KA1 side 1 or 2;9001KA2 side 1 or 2
Product Description Key selector switch head, Harmony 9001K, metal, key switch, 30mm, key 455, 2 positions, stay put
Product Keywords WEBREADY
Product Name Push button switch
Product Or Component Type Head for key selector switch
ProductLine SQD
Range Of Product Harmony 9001K
Shape Of Signaling Unit Head Octagonal
Special Features CHROMIUM PLATED METAL,SELECTOR SWITCH
Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 852-EN/IEC 60947-1-CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-5-4-JIS C 4520,NEMA-UL 508
Sub Brand 9001K
Type SELECTOR SWITCH
Type Of Keylock Ronis
Type Of Operator stay put;Stay put
UNSPSC 39122216
UPC 78590183127

Resources

CatalogNumber 9001KS11K1R
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
