SQD 9001KS11K3H13

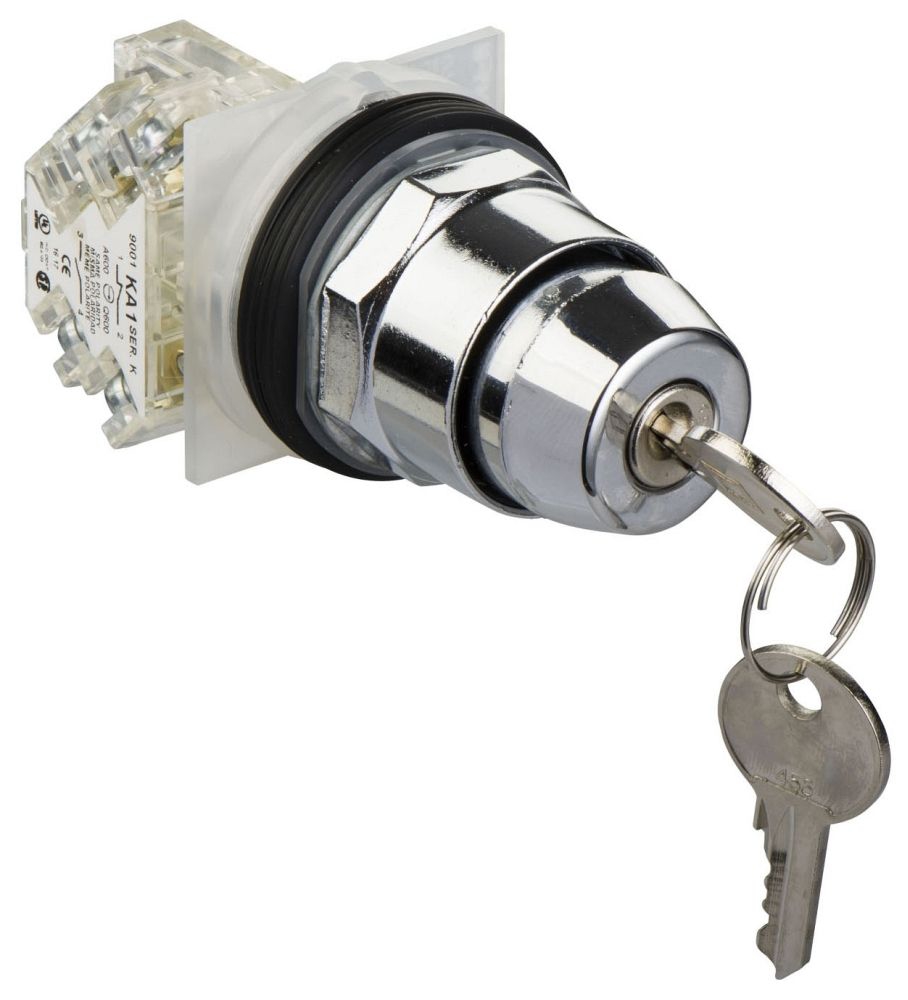

Selector switch, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO

Page Loading...
SQUARE-D/SCHNEIDER
Selector switch, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO

Mouse over image to zoom, click to enlarge

Description:
Selector switch, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO

UPC:  78590103488

Part Number: 9001KS11K3H13

UNSPSC: 39122216

Status:  UNKNOWN

Your Price:  $218.30 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001KS11K3H13
Actuator 2 positions;Black key operated knob;Key switch;maintained;Stay put
Additional Information Applicable Standard EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C 4520; Mounting Type Panel; Terminal Type Screw Clamp; Contact Material Silver Alloy; Key Number E10
Approval UL 508, CSA C22.2, CE
Base Price 0.0000
Bezel Material Chromium Plated Metal
Brand Name Harmony[R]
Cam Code E
Catalog Number 9001KS11K3H13
Commerce Sector Construction Materials
Commodity Code 42250
Commodity Description Selector Switch Complete Assemblies
Connection Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm IEC 60947-1
Contact Configuration 1 C/O;1NO-1NC
Contact Rating 600 VAC 10 Ampere, 600 VDC 2.5 Ampere
CountryOfOrigin MX
DDCATEGORY 2156
Directory CIS
Enclosure NEMA 1/2/3/3R/4/12/13, IP66
Families 2156
Family Description Selector Switch Complete Assemblies
Image Location * Image
Industry ELX
InvoiceDescription Selector switch, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO;SELECTOR SWITCH
Item Number 03488
Long Description NON ILLUMINATED SELECTOR SWITCH, KEY REMOVE LEFT, KEY REMOVE RIGHT, ROUND TYPE; 30 MM SIZE; 1NO-1NC CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL
MSDS Form Number *
Material Metal
Model 9001K
Noun *
Number Of Positions 2
Operation Type Maintained
Product Description Selector switch, Harmony 9001K, metal, key switch, key active right left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO
Product Keywords WEBREADY
Product Name Push button switch
ProductLine SQD
Size 30 MM
Throw Left-Right 70 Degree
Type Key Remove Left, Key Remove Right, Round
UNSPSC 39122216
UPC 78590103488
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9001KS11K3H13
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
