SQD 9001KS43FBH2

30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13

Page Loading...
SQUARE-D/SCHNEIDER
30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13

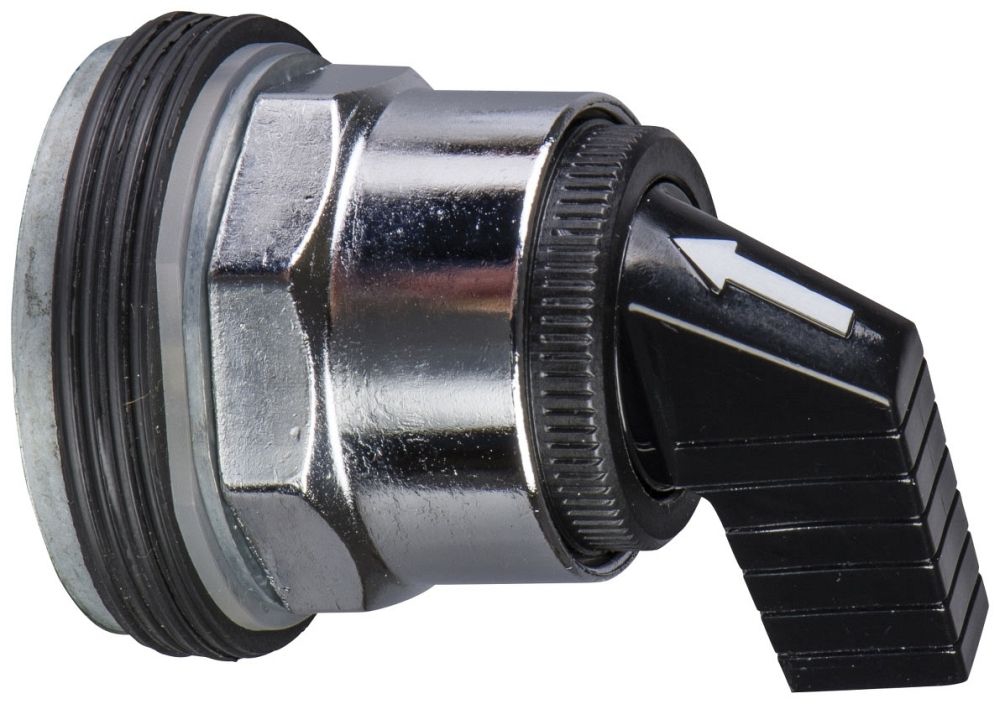

Mouse over image to zoom, click to enlarge

Description:
30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13

UPC:  78590172589

Part Number: 9001KS43FBH2

UNSPSC: 39122216

Status:  UNKNOWN

Your Price:  $167.58 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001KS43FBH2
Actuator 3 positions;Black gloved hand knob;Long handle;maintained;Stay put
Additional Information Applicable Standard EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C 4520; Mounting Type Panel; Terminal Type Screw Clamp; Contact Material Silver Alloy
Approval UL 508, CSA C22.2, CE
Base Price 0.0000
Bezel Material Chromium Plated Metal
Brand Name Harmony[R]
Cam Code C
Catalog Number 9001KS43FBH2
Commerce Sector Construction Materials
Commodity Code 42250
Commodity Description Selector Switch Complete Assemblies
Connection Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm IEC 60947-1
Contact Configuration 2 C/O;2NO-2NC
Contact Rating 600 VAC 10 Ampere, 600 VDC 2.5 Ampere
CountryOfOrigin MX
DDCATEGORY 2156
Directory CIS
Enclosure NEMA 1/2/3/3R/4/12/13, IP66
Families 2156
Family Description Selector Switch Complete Assemblies
Image Location * Image
Industry ELX
InvoiceDescription 30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13;SELECTOR SWITCH
Item Number 72589
Knob Color Black
Long Description NON ILLUMINATED SELECTOR SWITCH, GLOVED KNOB LEVER, ROUND TYPE; 30 MM SIZE; 2NO-2NC CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL
MSDS Form Number *
Material Metal
Model 9001K
Noun *
Number Of Positions 3
Operation Type Maintained
Product Description 30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13
Product Keywords WEBREADY
Product Name Push button switch
ProductLine SQD
Size 30 MM
Throw Left-Center-Right 70 Degree
Type Gloved Knob Lever, Round
UNSPSC 39122216
UPC 78590172589
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9001KS43FBH2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
