| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9001KS46BH2 |
| Action | MAINTAINED |
| Actuator | Black standard knob; maintained;3 positions;Standard handle;Stay put |
| Additional Information | Applicable Standard EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C 4520; Mounting Type Panel; Terminal Type Screw Clamp; Contact Material Silver Alloy |
| Amperage Rating | 10 A |
| Approval | UL 508, CSA C22.2, CE |
| Base Price | 0.0000 |
| Bezel Material | Chromium plated metal NULL;Chromium Plated Metal |
| Brand Name | Harmony 9001K;Harmony[R] |
| Cam Code | F |
| Cam Profile | 6.0 |
| Cap Operator Or Lens Colour | Black |
| Catalog Number | 9001KS46BH2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42250 |
| Commodity Description | Selector Switch Complete Assemblies |
| Connection | Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm IEC 60947-1 |
| Connections Terminals | Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm IEC 60947-1 |
| Contact Configuration | 2 C/O;2NO-2NC |
| Contact Rating | AC15 - DC13;600 VAC 10 Ampere, 600 VDC 2.5 Ampere |
| CountryOfOrigin | MX |
| DDCATEGORY | 2156 |
| Device Presentation | Complete product |
| Directory | CIS |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13;NEMA 1/2/3/3R/4/12/13, IP66 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) |
| Families | 2156 |
| Family Description | Selector Switch Complete Assemblies |
| Image Location | * Image |
| Indicator | BLACK |
| Industry | ELX |
| InvoiceDescription | 30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13;SELECTOR SWITCH |
| Item Number | 03512 |
| Knob Color | Black |

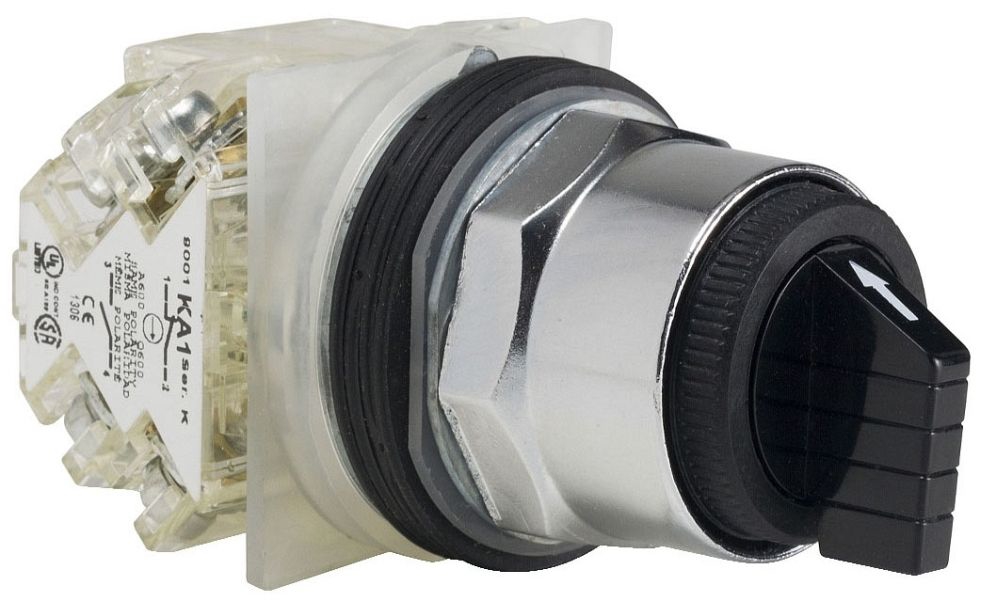

| Long Description | NON ILLUMINATED SELECTOR SWITCH, STANDARD KNOB, ROUND TYPE; 30 MM SIZE; 2NO-2NC CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; NEMA 1/2/3/3R/4/12/13, IP66 ENCLOSURE |
| MSDS Form Number | * |
| Material | Metal |
| Model | 9001K |
| Mounting | PANEL |
| Mounting Diameter Metric | 30.0 mm |
| Noun | * |
| Number Of Positions | 3 |
| Operation Type | Maintained |
| Operator Profile | Black standard knob |
| Product Description | 30mm push button, Type K, 3 position selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, black knob, NEMA 4, 13 |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | SQD |
| Size | 30 MM |
| Special Features | CHROMIUM PLATED METAL,SELECTOR SWITCH |
| Standard | CE-CSA LR24590 CLASS 3211 03-UL LISTED FILE E42259 CCN NKCR |
| Sub Brand | K |
| Throw | Left-Center-Right 70 Degree |
| Type | Selector switch;Standard Knob, Round |
| Type Of Operator | maintained |
| UNSPSC | 39122216 |
| UPC | 78590103512 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 V |
