| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9001SK2L1GH13 |
| Action | Standard |
| Actuator | Green projecting; spring return |
| Additional Information | Applicable Standard EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C 4520/852; Contact Material Silver Alloy; Mounting Type Panel; Terminal Type Screw Clamp; Enclosure Type Watertight, Dusttight, Oiltight and Corrosion Resistant |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600 NEMA |
| Approval | UL 508, CSA C22.2, CE |
| Base Price | 0.0000 |
| Bezel Material | Plastic |
| Brand Name | Harmony 9001SK;Harmony[R] |
| Bulb Base | BA 9s |
| Cap Lens Color | Green |
| Catalog Number | 9001SK2L1GH13 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Connection | Screw clamp terminals 1 x 0.22...2 x 1.5 mm EN/IEC 60947-1 |
| Connections Terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm EN/IEC 60947-1 |
| Contact Configuration | 1 C/O;1NO-1NC |
| Contact Rating | AC15 - DC13;600 VAC 10 Ampere, 600 VDC |
| CountryOfOrigin | MX |
| DDCATEGORY | 2152 |
| Directory | CIS |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X;NEMA 4/4X/13, IP66 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Ie Rated Operational Current | 3A 240 V, AC-15, A600-Q600 NEMA | |
| Illumination Type | incandescent |
| Image Location | * Image |
| Indicator | BA 9S |
| Industry | ELX |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| InvoiceDescription | Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, 110-120V, 1 C/O;PUSHBUTTON 600VAC |
| Item Number | 04090 |
| Lamp Included | Yes |
| Lamp Input Type | 110 to 120 VAC at 50/60 Hz Transformer |
| Lamp Number | 755 |
| Lamp Type | Incandescent |
| Light Block Supply | Via integral transformer |
| Light Source | incandescent |
| Long Description | ILLUMINATED PUSHBUTTON, WITHOUT GUARD TYPE; 30 MM SIZE; 1NO-1NC CONTACT CONFIGURATION; MOMENTARY OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; NEMA 4/4X/13, IP66 ENCLOSURE; YES LAMP INCLUDED |
| MSDS Form Number | * |
| Material | Plastic |
| Mechanical Durability | 5000000.0 |
| Model | 9001SK |
| Mounting | PANEL |
| Noun | * |
| Operating Position | Any position |
| Operating Temperature | -25-70 AC |
| Operation Type | Momentary |
| Operator Add Information | Without guard |
| Operator Profile | Green projecting |

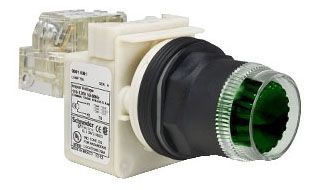

| Product Description | Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, 110-120V, 1 C/O |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | SQD |
| Shape Of Screw Head | Cross slotted |
| Size | 1.18 in;30 MM |
| Special Features | WITHOUT GUARD |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 4520-EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-UL 508-JIS C 852-CSA C22.2 NO 14,UL 508-NEMA |
| Sub Brand | 9001SK |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Type | Illuminated push-button;Without Guard |
| Type Of Operator | spring return |
| UNSPSC | 39122216 |
| UPC | 78590104090 |
| Ui Rated Insulation Voltage | 250V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 2.5kV EN/IEC 60947-1 |
| Us Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 110...120 V AC 50/60 Hz |
