| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9001SK2L38LGGH13 |
| Action | Standard |
| Additional Information | APPLICABLE STANDARD EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C 4520/852; CONTACT MATERIAL SILVER ALLOY; MOUNTING TYPE PANEL; TERMINAL TYPE SCREW CLAMP; ENCLOSURE TYPE WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT |
| Amperage Rating | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Approval | UL 508, CSA C22.2, CE |
| Base Price | 0.0000 |
| Bezel Material | Plastic;BLACK PLASTIC |
| Brand Name | Harmony 9001SK;Harmony[T] |
| Bulb Base | BA 9s |
| Cap Lens Color | GREEN |
| Catalog Number | 9001SK2L38LGGH13 |
| Color | Green |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Connections Terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm EN/IEC 60947-1 |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE |
| Contacts Material | Silver alloy contacts |
| CountryOfOrigin | MX |
| DDCATEGORY | 2152 |
| Device Presentation | Complete product |
| Directory | CIS |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X;NEMA 4/4X/13, IP66 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Icm Rated Sc Making Cap | 0.1kA 240 V DC-13, 7200VA;12kA 600 V AC-15, 7200VA;15kA 480 V AC-15, 7200VA;30kA 125 V DC-13, 7200VA;30kA 240 V AC-15, 7200VA;60kA 120 V AC-15, 7200VA;60kA 250 V DC-13, 7200VA |
| Ie Rated Operational Current | 0.55A 125 V, DC-13, A600-Q600 NEMA |
| Image Location | * Image |
| Industry | ELX |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| InvoiceDescription | Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, LED green, 120V, 1 C/O;PUSHBUTTON |
| Item Number | 69687 |
| Ith Cnvtl Free Air Therm Crrt | 10 A |
| Lamp Included | YES |
| Lamp Input Type | 120 VAC/VDC FULL VOLTAGE/RESISTOR |
| Lamp Type | GREEN LED |
| Light Block Supply | Direct |
| Light Source | LED |
| Long Description | ILLUMINATED PUSHBUTTON, WITHOUT GUARD TYPE; 30 MM SIZE; 1NO-1NC CONTACT CONFIGURATION; MOMENTARY OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; NEMA 4/4X/13, IP66 ENCLOSURE; YES LAMP INCLUDED |
| MSDS Form Number | * |
| Material | Plastic |
| Mechanical Durability | 5000000.0 |
| Model | 9001SK |
| Mounting | PANEL |
| Noun | * |
| Operating Position | Any position |
| Operation Type | MOMENTARY |
| Operator Add Information | Without guard |
| Operator Additional Information | Without guard |
| Operator Profile | Green projecting |

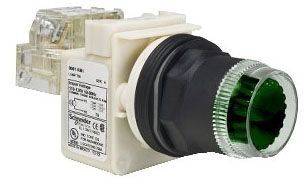

| Product Description | Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, LED green, 120V, 1 C/O |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| Product Weight | 0.40 lb |
| ProductLine | SQD |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA;1.5 kA 480 V AC-15, 720 VA;3 kA 240 V AC-15, 720 VA;6 kA 120 V AC-15, 720 VA;0.1 kA 240 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13 |
| Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA | |
| Rated Short Circuit Making Capacity | 0.1 kA 240 V DC-13, 7200 VA;12 kA 600 V AC-15, 7200 VA;15 kA 480 V AC-15, 7200 VA;30 kA 125 V DC-13, 7200 VA;30 kA 240 V AC-15, 7200 VA;60 kA 120 V AC-15, 7200 VA;60 kA 250 V DC-13, 7200 VA |
| Shape Of Screw Head | Cross slotted |
| Short Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Size | 30 MM |
| Sub Brand | 9001SK |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Type | WITHOUT GUARD |
| Type Of Operator | spring return |
| UNSPSC | 39122216 |
| UPC | 78590169687 |
| Ui Rated Insulation Voltage | 250V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 2.5kV EN/IEC 60947-1 |
| Us Rated Supply Voltage | 120 V AC/DC |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
