| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9001SKR3UH13 |
| Action | Standard |
| Actuator | spring return;7 colours choice projecting, unmarked;Projecting;Spring return |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600-0.55 A 125 V, DC-13, A600-Q600 |
| Base Price | 0.0000 |
| Brand Name | Harmony 9001SK |
| Connection | Screw clamp terminals 1 x 0.22...2 x 1.5 mm EN/IEC 60947-1 |
| Contact Configuration | 1 C/O |
| Contact Rating | AC15 - DC13 |
| Contacts Material | Silver alloy contacts |
| Conventional Free Air Thermal Current Metric | 10 A |
| CountryOfOrigin | MX |
| DDCATEGORY | 2152 |
| Device Presentation | Complete product |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| InvoiceDescription | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS |
| Material | Plastic |
| Mechanical Durability | 5000000.0 |
| Mounting | PANEL |
| Mounting Diameter Metric | 30.0 mm |
| Net Weight Metric | 0.07 kg |
| Operating Position | Any position |
| Operating Temperature | -25-70 AC |
| Operator Additional Information | Without guard |
| Positive Opening | Without | |

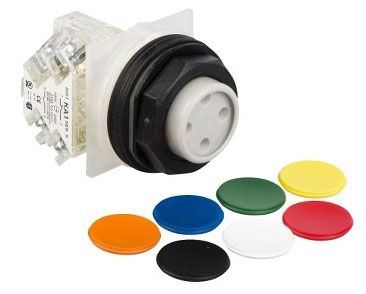

| Product Description | Push-button, Harmony 9001SK, plastic, projecting, 7 colours choice, 30mm, spring return, 1 C/O |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | SQD |
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA;6 kA 120 V AC-15, 720 VA;1.2 kA 600 V AC-15, 720 VA;1.5 kA 480 V AC-15, 720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13 |
| Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Rated Operational Current | 3 A 240 V, AC-15, A600-Q600;0.55 A 125 V, DC-13, A600-Q600 |
| Rated Short Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA;15 kA 480 V AC-15, 7200 VA;30 kA 240 V AC-15, 7200 VA;60 kA 120 V AC-15, 7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13 |
| Shape Of Screw Head | Cross slotted |
| Shape Of Signaling Unit Head | Octagonal |
| Short Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Special Features | WITHOUT GUARD |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-JIS C 4520-EN/IEC 60947-5-4-EN/IEC 60947-1-UL 508-JIS C 852,IP66 IEC 60529,NEMA-UL 508 |
| Sub Brand | 9001SK |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Type | Push-button |
| UNSPSC | 39122216 |
| UPC | 78590104275 |
| Voltage Rating | 600 V |
