SQD 9001SKS63B

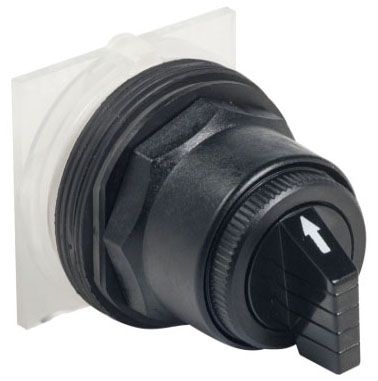

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center

Page Loading...
SQUARE-D/SCHNEIDER
Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center

Mouse over image to zoom, click to enlarge

Description:
Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center

UPC:  78590104410

Part Number: 9001SKS63B

UNSPSC: 39122216

Status:  UNKNOWN

Your Price:  $81.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9001SKS63B
Action SPRING RETURN LEFT TO CENTRE
Actuator 3 positions
Application NON ILLUMINATED PUSH-BUTTON
Base Price 0.0000
Bezel Material Plastic
Brand Name Harmony 9001SK
Contact Configuration Without contact block
CountryOfOrigin MX
DDCATEGORY 2157
Device Presentation Basic element
Device Short Name 9001SK
Enclosure NEMA 1/2/3/3R/4/4X/6/12/13
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Families 2157
Family Description Selector Switch Components
InvoiceDescription 30MM SELECTOR SWITCH 3 POSITION
Material Plastic
Mounting PANEL
Mounting Diameter 1.18 in
Mounting Diameter Metric 30.0 mm
Operating Temperature -25-70 AC
Product Description Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return left to center
Product Keywords WEBREADY
Product Name Push button switch
Product Or Component Type Selector switch
ProductLine SQD
Range Of Product Harmony 9001SK
Size 30 MM
Special Features PLASTIC,SELECTOR SWITCH
Standard CSA LR24590 CLASS 3211 03-CE-UL LISTED FILE E42259 CCN NKCR,IP66 IEC 60529
Sub Brand 9001SK
Type Head for selector switch
UNSPSC 39122216
UPC 78590104410
Voltage Rating 600 V

Resources

CatalogNumber 9001SKS63B
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
