SQD 9007AC1

Snap Switch 600Vac 15Amp Ac +Options

Page Loading...
SQUARE-D/SCHNEIDER
Snap Switch 600Vac 15Amp Ac +Options

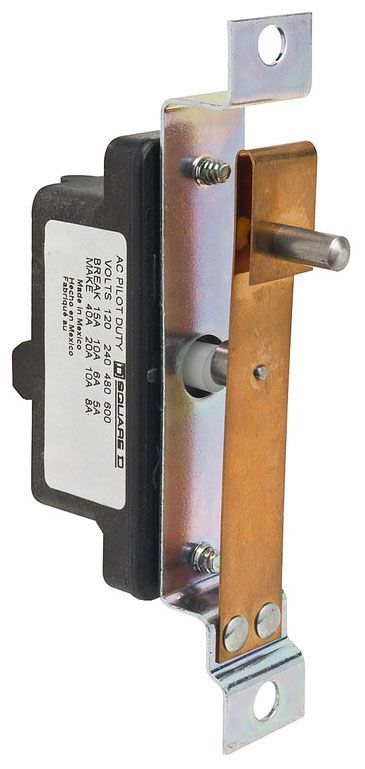

Mouse over image to zoom, click to enlarge

Description:
Snap Switch 600Vac 15Amp Ac +Options

UPC:  78590175892

Part Number: 9007AC1

UNSPSC: 39122209

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007AC1
Actuator Head Type Cabinet Door Lever Plunger
Additional Information Contact Material Silver Alloy; Wire Size 22 to 14 AWG
Application cabinet door type
Base Price 0.0000
Body Material Cast Zinc
Body Plate Style metal
Body Type plug-in
Catalog Number 9007AC1
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection screw terminals
Connection Type Screw Clamp Terminal
Contact Configuration SPDT, 1NO-1NC Double Break
Contact Rating 600 VAC/VDC 15 Ampere
CountryOfOrigin FR
DDCATEGORY 2185
Differential Travel 0.05 Inch
Directory CIS
Families 2185
Family Description Miniature & Snap Action Limit Switches
Head Type linear
Image Location * Image
Industry ELX
InvoiceDescription Snap Switch 600Vac 15Amp Ac +Options;SNAP SWITCH 600VAC
Item Number 75892
Long Description SNAP ACTION INDUSTRIAL SWITCH, HEAVY DUTY, INDUSTRIAL TYPE; SPDT, 1NO-1NC DOUBLE BREAK CONTACT CONFIGURATION; SCREW CLAMP TERMINAL CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC/VDC 15 AMPERE CONTACT RATING; CAST ZINC BODY MATERIAL
MSDS Form Number *
Model 9007A
Noun *
Operating Force 8 Oz
Operating Temperature -20 to 185 Deg F
Operating Travel 0.09 Inch
Operation Type Spring Return, Snap Action
Operator Profile plunger head
Pretravel 0.16 Inch
Product Description Snap Switch 600Vac 15Amp Ac +Options
Product Keywords WEBREADY
Product Name Snap switch
ProductLine SQD
Total Travel 0.25 Inch
Type snap limit switch;Heavy Duty, Industrial
Type Of Operator metal
UNSPSC 39122209
UPC 78590175892
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007AC1
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
