| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007AP321 |
| Action | Linear;Snap action |
| Actuating Force | 1.25lbf;1.25lbf |
| Actuator | Traverse approach, 2 directions;Cast zinc;Spring return roller plunger steel bushing mounted;Plunger head |
| Actuator Head Type | ROLLER PLUNGER |
| Additional Information | WIRE SIZE 22 TO 14 AWG |
| Amperage Rating | 15 A,5 A 600 V AC, A600 NEMA RATING DESIGNATION-6 A 480 V AC, A600 NEMA RATING DESIGNATION-10 A 240 V AC, A600 NEMA RATING DESIGNATION-15 A 120 V AC, A600 NEMA RATING DESIGNATION-0.02 A 600 V DC-0.2 A 250 V DC-0.5 A 125 V DC |
| Base Price | 0.0000 |
| Body Material | CAST ZINC |
| Body Type | Fixed |
| Brand Name | 9007 |
| Catalog Number | 9007AP321 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46150 |
| Commodity Description | Miniature & Snap Action Limit Switches |
| Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Connection Type | SCREW CLAMP TERMINAL |
| Contact Configuration | Form Z;NC-NO SPDT-DB;SPDT, 1NO-1NC |
| Contact Material | Silver |
| Contact Rating | 600 VAC/VDC 15 AMPERE |
| Contacts Material | Silver contacts |
| Contacts Type And Composition | NC-NO SPDT-DB |
| CountryOfOrigin | MX |
| DDCATEGORY | 2185 |
| Differential Travel | 0.035 TO 0.046 INCH |
| Directory | CIS |
| Electrical Connection | 12 6 binder head screw terminals AWG 22...AWG 14) |
| Enclosure | NEMA 1 NEMA TYPE 250 |
| Families | 2185 |
| Family Description | Miniature & Snap Action Limit Switches |
| Height | 2.5 in |
| Ie Rated Operational Current | 5A 600 V AC, A600 NEMA rating designation;6A 480 V AC, A600 NEMA rating designation;10A 240 V AC, A600 NEMA rating designation;15A 120 V AC, A600 NEMA rating designation;0.02A 600 V DC;0.2A 250 V DC;0.5A 125 V DC |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Snap switch, 9007AO, metal roller plunger head, 15A at 120VAC, 1NO/1NC, open type;SNAP SWITCH 600VAC |
| Item Number | 80941 |
| Ithe Cnvtl Enclosed Therm Crrt | 15 A |
| Long Description | SNAP ACTION INDUSTRIAL SWITCH, HEAVY DUTY, INDUSTRIAL TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; SCREW CLAMP TERMINAL CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC/VDC 15 AMPERE CONTACT RATING; CAST ZINC BODY MATERIAL |
| MSDS Form Number | * |
| Material | Cast zinc;Metal |
| Model | 9007A |
| Mounting | Panel mounting non-oil tight;By the head |
| Noun | * |
| Number Of Poles | 1.0 |
| Number Of Steps | 1.0 |
| Operating Force | 20 OZ |
| Operating Temperature | -20-185 AF;-20 TO 185 DEG F |
| Operation Type | SPRING RETURN, SNAP ACTION |
| Positive Opening | Without |
| Pretravel | 0.06 TO 0.15 INCH |
| Product Description | Snap Switch 600Vac 15Amp Ap +Options |
| Product Keywords | WEBREADY |

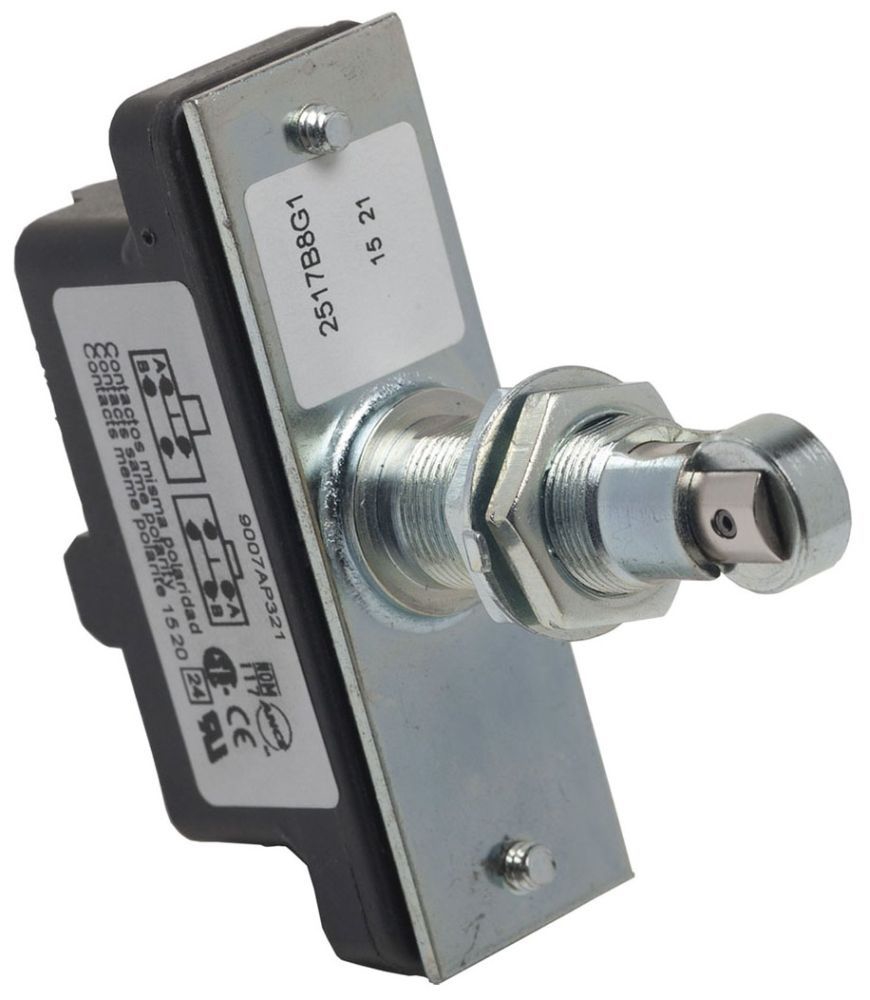

| Product Name | Snap switch |
| Product Weight | 0.1 lb |
| ProductLine | SQD |
| Rated Insulation Voltage | 600 V 3)UL 508 contact block;600 VCSA C22.2 No 14 contact block | |
| Series Name | Heavy duty |
| Size | 2.69 in |
| Special Features | 1...2 CABLES FOR 6 BINDER HEAD SCREW TERMINALS (AWG 22...AWG 14),IP20 CONFORMING TO IEC 60529 |
| Standard | IP20 IEC 60529 |
| Sub Brand | 9007AO/CO |
| Switch Actuation | By 30 cam |
| Terminals Description Iso N 1 | (1-2)NC;(3-4)NO |
| Terminals Description Iso N1 | (1-2)NC;(3-4)NO |
| Total Travel | 0.2 TO 0.34 INCH |
| Type | Snap limit switch;HEAVY DUTY, INDUSTRIAL |
| Type Of Approach | Traverse approach, 2 directions |
| Type Of Operator | Spring return roller plunger steel bushing mounted |
| UNSPSC | 39122209 |
| UPC | 78590180941 |
| Ui Rated Insulation Voltage | 600V 3)UL 508 contact block;600VCSA C22.2 No 14 contact block |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 V |
