SQD 9007AW46

Limit Switch 600Vac 15Amp Aw +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 15Amp Aw +Options

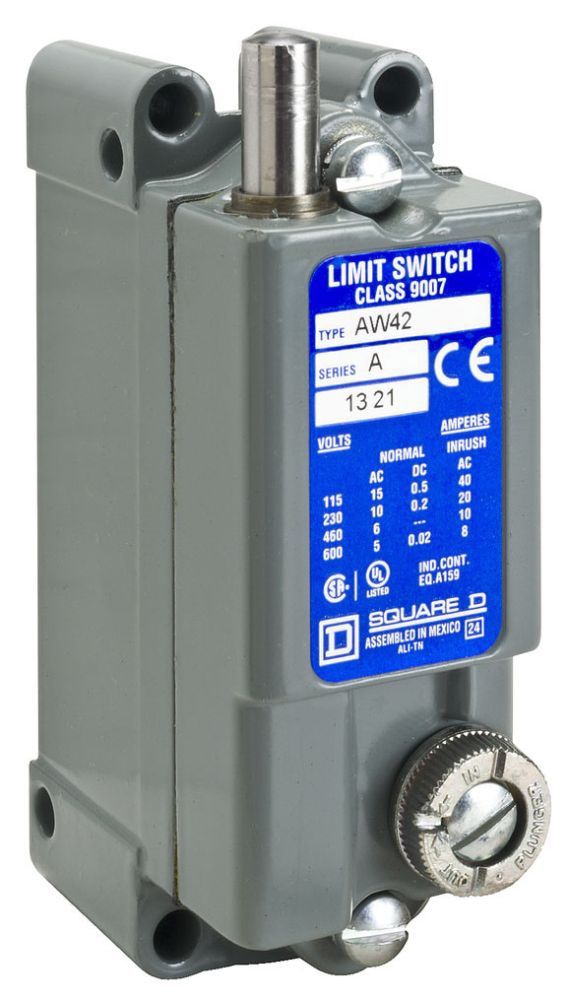

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 15Amp Aw +Options

UPC:  78590180860

Part Number: 9007AW46

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007AW46
Actuator Head Type Top Push Rod Plunger
Approval UL, CSA, CE
Base Price 0.0000
Body Material Cast Zinc
Catalog Number 9007AW46
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection Type 1/2 Inch NPT Conduit/Screw Clamp Terminal
Contact Configuration SPDT, 1NO-1NC
Contact Rating 600 VAC/VDC 15 Ampere
CountryOfOrigin MX
DDCATEGORY 2183
Differential Travel 3/64 Inch
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13
Families 2183
Family Description Heavy Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 15Amp Aw +Options;LIMIT SWITCH 600VAC
Item Number 80860
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, PLUG-IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT/SCREW CLAMP TERMINAL CONNECTION TYPE; MOMENTARY, SNAP ACTION OPERATION TYPE; 600 VAC/VDC 15 AMPERE CONTACT RATING
MSDS Form Number *
Model 9007AW
Noun *
Operating Force 3 Lb
Operating Temperature -65 to 185 Deg F
Operation Type Momentary, Snap Action
Pretravel 3/32 Inch
Product Description Limit Switch 600Vac 15Amp Aw +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 1/4 Inch
Type Heavy Duty, Plug-In
UNSPSC 39122213
UPC 78590180860
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007AW46
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
