SQUARE-D/SCHNEIDER
Limit Switch Lever Arm T+Ft+Options

Mouse over image to zoom, click to enlarge

Description:

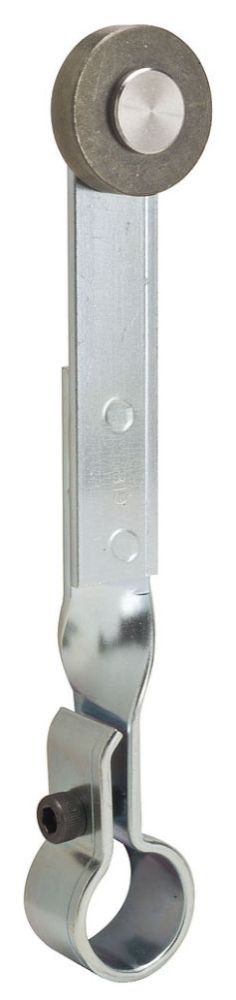

Limit Switch Lever Arm T+Ft+Options

UPC:  78590188793

Part Number: 9007B19

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007B19
Additional Information OPERATING TEMPERATURE -10 TO 185 DEG F
Ambient Air Temp For Operation -10 to -185 F
Ambient Air Temp For Storage -10 to -185 F
Ambient Air Temp Operation -10 to -185 F
Ambient Air Temp Storage -10 to -185 F
Base Price 0.0000
Catalog Number 9007B19
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions standard environment
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch Lever Arm T+Ft+Options;LIMIT SWITCH LEVER ARM
Item Number 88793
Lever Length Radius 5 INCH
Lever Material CAST ZINC
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 0.75 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; CAST ZINC LEVER MATERIAL
MSDS Form Number *
Model 9007
Movement Of Operating Head rotary
Noun *
Positive Opening without
Product Description Limit Switch Lever Arm T+Ft+Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Roller Diameter 0.75 INCH
Roller Material STEEL
Roller Mounting Location FRONT/BACK
Roller Type STANDARD
Roller Width 0.25 INCH
Switch Actuation by 30 cam
Type limit switch lever
Type Of Approach lateral approach
Type Of Operator spring return roller lever cast zinc 5-5 in
Type Of Roller convertible roller outside roller (convertible) steel 1 0.75 in 0.25 in
UNSPSC 39122213
UPC 78590188793
Used On 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo
