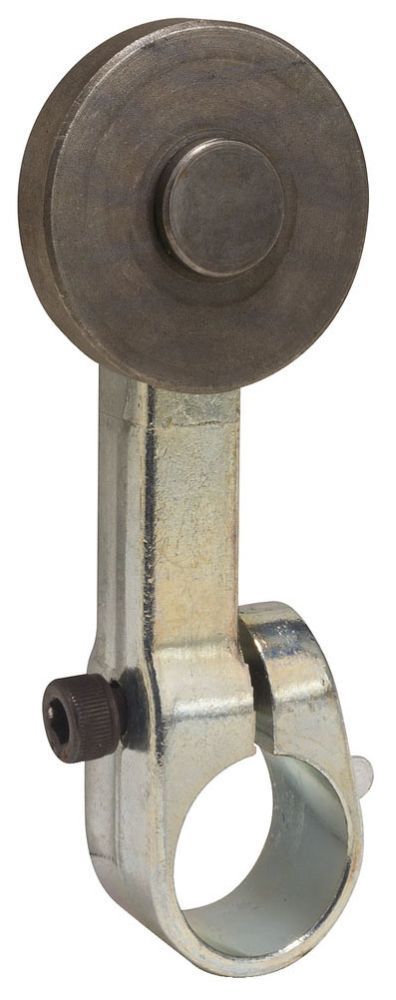

SQD 9007B3

Limit Switch Lever Arm T+Ft +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm T+Ft +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm T+Ft +Options

UPC:  78590175980

Part Number: 9007B3

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007B3
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 1.5-1.5 in - convertible roller
Additional Information Operating Temperature -10 to 185 Deg F
Application 9007T/FT,9007T/FT,9007T-9007FT-9007C..S9,SEVERE DUTY
Associated Complete Product 9007T;9007C..S9;9007FT
Associated Head 9007CS9;9007AS9;9007T10S9;9007NS9;9007BS9;9007T5S9
Base Price 0.0000
Brand Name 9007
Catalog Number 9007B3
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm t+ft +options;LIMIT SWITCH LEVER ARM
Item Number 75980
Lever Length Radius 1.5 Inch
Lever Material Cast Zinc
Lever Type Spring Return, Fixed Length
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 1.5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 1.38 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; CAST ZINC LEVER MATERIAL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -10-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm T+Ft +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 1.38 Inch
Roller Material Steel
Roller Mounting Location Front/Back
Roller Type Standard
Roller Width 0.25 Inch
Series Name Severe duty
Size 1.50 INCHES 1.38 X 0.25 INCHES
Special Features 1 steel outside roller (convertible) 1.38 in 0.25 in
Sub Brand 9007T/FT
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 1.5in (38.10mm) - convertible roller NULL
Type Of Roller 1 steel outside roller (convertible) 1.38in (35.05mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590175980
Used On 9007T/FT Severe Duty Mill and Foundry Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007B3
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
