SQD 9007C2

Limit Switch Lever Arm T+Ft+Options

Page Loading...
SQUARE-D/SCHNEIDER

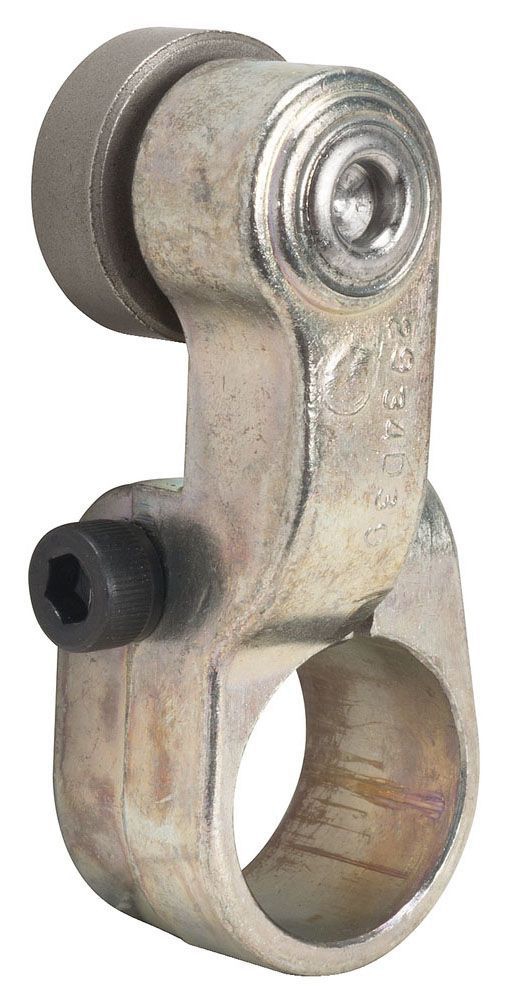

Limit Switch Lever Arm T+Ft+Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm T+Ft+Options

UPC:  78590175991

Part Number: 9007C2

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C2
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 1.5-1.5 in - 0.75 in -
Application 9007T/FT,9007T/FT,9007T-9007FT-9007C..S9,SEVERE DUTY
Associated Complete Product 9007T;9007FT;9007C..S9
Associated Head 9007AS9;9007CS9;9007T10S9;9007NS9;9007T5S9;9007BS9
Base Price 0.0000
Brand Name 9007
Catalog Number 9007C2
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, 9007T/FT zinc, fixed length, inside offset steel roller;LIMIT SWITCH LEVER ARM
Item Number 75991
Lever Length Radius 1.5 INCH
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 1.5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 1 INCH ROLLER DIAMETER; OFFSET ROLLER TYPE; BACK ROLLER MOUNTING LOCATION; 9007 MODEL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -10-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm T+Ft+Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 1 INCH
Roller Material STEEL
Roller Mounting Location BACK
Roller Type OFFSET
Roller Width 0.25 INCH
Series Name Severe duty
Size 1.50 INCHES 1.00 X 0.25 INCHES
Special Features 1 steel inside offset roller 1 in 0.25 in
Sub Brand 9007T/FT
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 1.5in (38.10mm) - 0.75 in - NULL
Type Of Roller 1 steel inside offset roller 1in (25.40mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590175991
Used On 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007C2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
