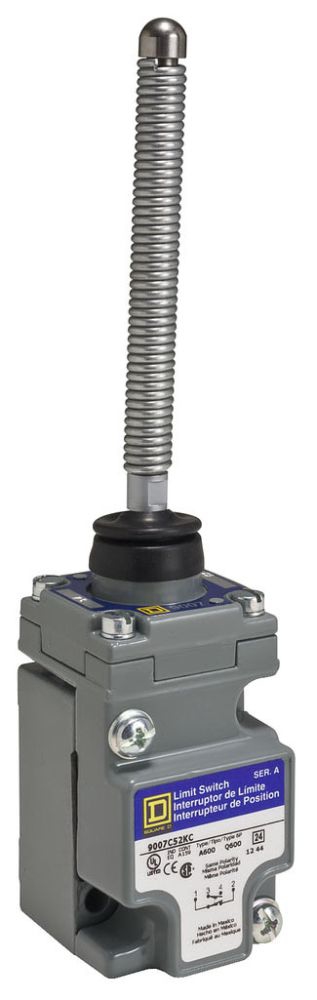

SQD 9007C52KC

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590185710

Part Number: 9007C52KC

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C52KC
Actuator Head Type WOBBLE STICK, COIL SPRING EXTENSION
Additional Information APPLICABLE STANDARD IEC 60947, EN 60947-1/60947-5-1, NEMA 250; CONSTRUCTIONAL FEATURES OIL TIGHT, WATER TIGHT
Application compact box
Approval UL, CSA, CE
Base Price 0.0000
Body Material ZAMAK[R] ZINC ALLOY
Body Plate Style metal
Body Type plug-in
Catalog Number 9007C52KC
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection screw-clamp terminals
Connection Type 1/2 INCH NPT CONDUIT
Contact Configuration SPDT, 1NO-1NC
Contact Rating 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE
CountryOfOrigin ID
DDCATEGORY 2183
Differential Travel 3 DEG
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2183
Family Description Heavy Duty Limit Switches
Head Type multi-directional
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 85710
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, COMPACT, INDUSTRIAL, PLUG IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING
MSDS Form Number *
Model 9007C52
Noun *
Operating Force 3 LB-INCH
Operating Temperature 0 TO 185 DEG F
Operation Type SPRING RETURN, SNAP ACTION
Operator Profile multi-directional head
Pretravel 10 DEG
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 90 DEG
Type limit switch;HEAVY DUTY, COMPACT, INDUSTRIAL, PLUG IN
UNSPSC 39122213
UPC 78590185710
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007C52KC
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
