SQD 9007C54DY1905

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

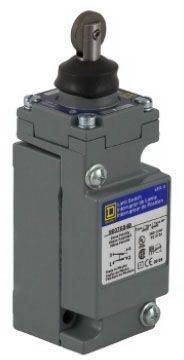

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590104608

Part Number: 9007C54DY1905

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C54DY1905
Action HORIZONTAL,SNAP ACTION
Actuator TOP ROLLER-PLUNGER HORIZONTAL
Actuator Head Type TOP ROLLER PLUNGER
Additional Information APPLICABLE STANDARD IEC 60947, EN 60947-1/60947-5-1, NEMA 250; FEATURES OIL TIGHT, WATER TIGHT
Amperage Rating 10 A
Application C,HEAVY DUTY
Approval UL, CSA, CE
Base Price 0.0000
Body Material ZAMAK[R] ZINC ALLOY
Brand Name Square D
Catalog Number 9007C54DY1905
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection 5 PINS MINI
Connection Type MINI 5-PIN BRAD HARRISON MALE CONNECTOR
Contact Configuration 1 NO/1 NC FORM Z - SPDT-DB;SPDT, 1NO-1NC
Contact Rating NEMA A600/Q600;600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE
CountryOfOrigin MX
DDCATEGORY 2183
Differential Travel 0.02 INCH
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2183
Family Description Heavy Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription LIMIT SWITCH 600V 10AMP C +OPTIONS;LIMIT SWITCH 600V
Item Number 04608
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; MINI 5-PIN BRAD HARRISON MALE CONNECTOR CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007C54
Noun *
Operating Force 3 LB
Operating Temperature 0-185 AF;0 TO 185 DEG F
Operation Type SPRING RETURN, SNAP ACTION
Pretravel 0.08 INCH
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standard CE-CSA-UL LISTED
Sub Brand C
Total Travel 0.25 INCH
Type MINI 5 PINS,PLUNGER HEAD TOP,STANDARD;HEAVY DUTY, INDUSTRIAL, PLUG IN
UNSPSC 39122213
UPC 78590104608
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V

Resources

CatalogNumber 9007C54DY1905
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
