| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007C54F |
| Action | By 30 cam;Vertical approach, 2 directions;Snap action |

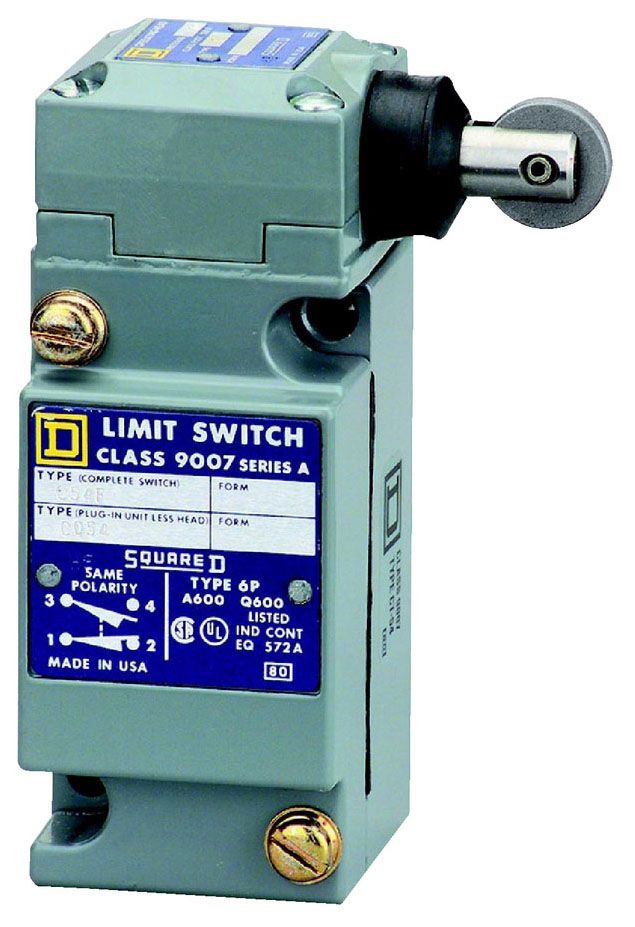

| Actuator | Steel spring return side roller plunger with vertical roller vertical convertible to horizontal) |
| Actuator Head Type | Vertical Side Roller Plunger |
| Additional Information | Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Features Oil Tight, Water Tight |
| Amperage Rating | 10 A |
| Application | Standard box |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body Material | Zinc;Zamak Zinc Alloy |
| Body Type | Plug-in |
| Brand Name | 9007 |
| Catalog Number | 9007C54F |
| Commerce Sector | Construction Materials |
| Commodity Code | 46130 |
| Commodity Description | Heavy Duty Limit Switches |
| Connection | Screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Connection Type | 1/2 Inch NPT Conduit |
| Contact Configuration | NC-NO;Form Z;SPDT, 1NO-1NC |
| Contact Form | Form Z |
| Contact Material | Silver |
| Contact Rating | NEMA A600/Q600;600 VAC 10 Ampere, 600 VDC 2.5 Ampere |
| Contacts Material | Silver contacts |
| CountryOfOrigin | MX |
| DDCATEGORY | 2183 |
| Differential Travel | 0.03 Inch |
| Directory | CIS |
| Electrical Connection | Screw-clamp terminals AWG 22...AWG 12), 12 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250;NEMA 1/2/4/6/6P/12/13, IP67 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Families | 2183 |
| Family Description | Heavy Duty Limit Switches |
| Function Available | - |
| Head Material | Zinc |
| Head Type | Plunger head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch, 9007, 600 V 10amp c +options;LIMIT SWITCH 600V |
| Item Number | 50069 |
| Long Description | HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG-IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Material | Metal |
| Model | 9007C54 |
| Mounting | By the body |
| Movement Of Operating Head | Linear |
| Noun | * |
| Number Of Poles | 1.0 |
| Operating Cycles | 1M |
| Operating Force | 4 Lb |
| Operating Temperature | -20-185 AF STANDARD ENVIRONMENT;-20 to 185 Deg F |
| Operation Type | Spring Return, Snap Action |
| Positive Opening | Without |
| Pretravel | 0.08 Inch |
| Product Description | Limit Switch 600V 10Amp C +Options |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 |
| Series Name | Heavy duty |
| Size | 2.63 in |
| Special Features | without |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007C |
| Switch Function | SPDT-DB |
| Terminals Description Iso N 1 | (3-4)NO;(1-2)NC | |
| Total Travel | 0.25 Inch |
| Type | Limit switch;Heavy Duty, Industrial, Plug-In |
| Type Of Approach | Vertical approach, 2 directions |
| UNSPSC | 39122213 |
| UPC | 78590150069 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA |
