SQD 9007C54R

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

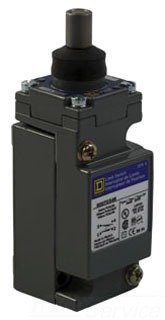

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590153825

Part Number: 9007C54R

UNSPSC: 39122213

Status:  UNKNOWN

Log In for Pricing



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C54R
Actuator Head Type Top Palm Plunger
Additional Information Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Features Oil Tight, Water Tight
Approval UL, CSA, CE
Body Material Zamak Zinc Alloy
Catalog Number 9007C54R
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection Type 1/2 Inch-14 TPI NPT Conduit
Contact Configuration SPDT, 1NO-1NC
Contact Rating 600 VAC 10 Ampere, 600 VDC 2.5 Ampere
CountryOfOrigin MX
DDCATEGORY 2183
Differential Travel 0.02 Inch
Directory CIS
Enclosure NEMA 2/4/6/6P/12/13, IP67
Families 2183
Family Description Heavy Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 53825
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG-IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC 10 AMPERE, 600 VDC 2.5 AMPERE CONTACT RATING
MSDS Form Number *
Model 9007C54
Noun *
Operating Force 3 Lb
Operating Temperature -20 to 185 Deg F
Operation Type Spring Return, Snap Action
Pretravel 0.08 Inch
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 0.25 Inch
Type Heavy Duty, Industrial, Plug-In
UNSPSC 39122213
UPC 78590153825
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007C54R
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
