SQD 9007C62B2

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

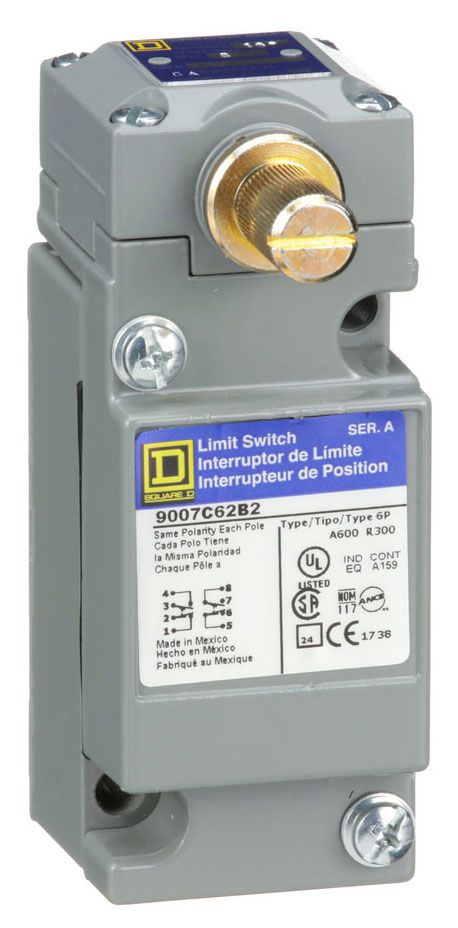

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590150065

Part Number: 9007C62B2

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C62B2
Actuator Head Type Metal Rotary Lever
Additional Information Overall Dimension 1.54 Inch Width x 4.02 Inch Depth x 1.77 Inch Height; Number of Poles 2; Contact Material Silver; Seal Material Neoprene
Application standard box
Approval UL, CSA, CE
Base Price 0.0000
Body Material Die-Cast Zinc Alloy
Body Plate Style metal
Body Type plug-in
Catalog Number 9007C62B2
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection screw-clamp terminals
Connection Type 22 to 12 AWG Screw Clamp Terminal, 1/2 Inch-14 Threaded Cable
Contact Configuration DPDT, 2NO-2NC
Contact Rating 600 Volt AC 10 Amp, 600 Volt DC 1 Amp
CountryOfOrigin MX
DDCATEGORY 2183
Differential Travel 4 Degree
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP65/IP66/IP67
Families 2183
Family Description Heavy Duty Limit Switches
Head Type rotary
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 50065
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, PLUG-IN, INDUSTRIAL TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 22 TO 12 AWG SCREW CLAMP TERMINAL, 1/2 INCH-14 THREADED CABLE CONNECTION TYPE
MSDS Form Number *
Model 9007C
Noun *
Operating Force 4 Pound-Inch
Operating Temperature -20 to 185 Deg F
Operation Type Snap Action, Spring Return, Clockwise/Counter Clockwise
Operator Profile rotary head
Pretravel 10 Degree
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 90 Degree
Type limit switch;Heavy Duty, Plug-In, Industrial
Type Of Operator 9007C lever
UNSPSC 39122213
UPC 78590150065
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007C62B2
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
