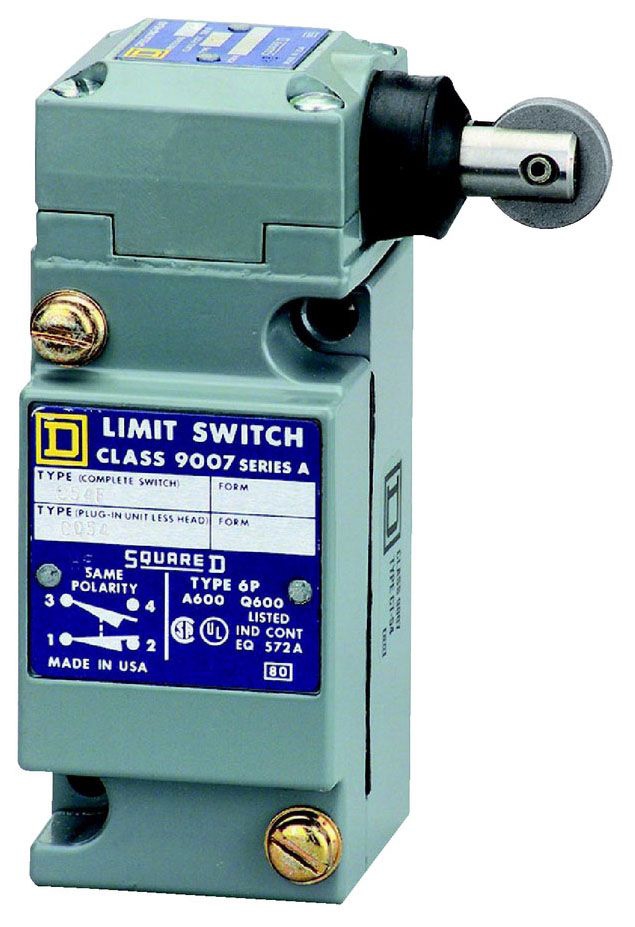

SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590153837

Part Number: 9007C66F

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C66F
Actuator Head Type Vertical Side Roller Plunger
Additional Information Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Features Oil Tight, Water Tight
Application standard box
Approval UL, CSA, CE
Base Price 0.0000
Body Material Zamak Zinc Alloy
Body Plate Style metal
Body Type plug-in
Catalog Number 9007C66F
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection screw-clamp terminals
Connection Type 1/2 Inch-14 TPI NPT Conduit/Screw Clamp Terminal
Contact Configuration DPDT, 2NO-2NC Double Break
Contact Rating 600 VAC 10 Ampere, 600 VDC 1 Ampere
CountryOfOrigin ID
DDCATEGORY 2183
Differential Travel 0.03 Inch
Directory CIS
Enclosure NEMA 2/4/6/6P/12/13, IP67
Families 2183
Family Description Heavy Duty Limit Switches
Head Type linear
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 53837
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG-IN TYPE; DPDT, 2NO-2NC DOUBLE BREAK CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT/SCREW CLAMP TERMINAL CONNECTION TYPE; SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007C66
Noun *
Operating Force 4 Lb
Operating Temperature -20 to 185 Deg F
Operation Type Spring Return, Snap Action
Operator Profile plunger head
Pretravel 0.08 Inch
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 0.25 Inch
Type limit switch;Heavy Duty, Industrial, Plug-In
UNSPSC 39122213
UPC 78590153837
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007C66F
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
