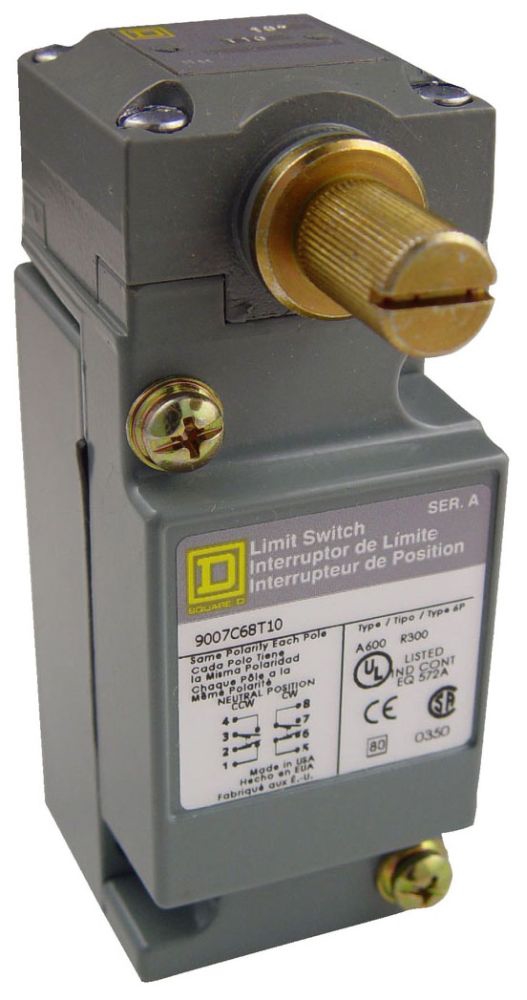

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007C68T10Y128 |
| Action | CW and CCW;from left and right;Lateral approach, 2 directions;Snap action |
| Actuator | Zinc spring return without operating lever -)9007C lever |
| Actuator Head Type | Rotary Lever |
| Additional Information | APPLICABLE STANDARD IEC 60947, EN 60947-1/60947-5-1, NEMA 250; FEATURES OIL TIGHT, WATER TIGHT |
| Amperage Rating | 10 A |
| Application | Standard box |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body Material | Zinc;Zinc Alloy |
| Body Type | Plug-in |
| Brand Name | 9007 |
| Catalog Number | 9007C68T10Y128 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46130 |
| Commodity Description | Heavy Duty Limit Switches |
| Connection | Screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Connection Type | 1/2 Inch-14 TPI NPT Conduit |
| Contact Configuration | 2(NC-NO);Form Z;DPDT, 2NO-2NC |
| Contact Form | Form Z |
| Contact Material | Silver |
| Contact Rating | 600 Volt AC 10 Amp, 600 Volt DC 1 Amp |
| Contacts Material | Silver contacts |
| CountryOfOrigin | MX |
| DDCATEGORY | 2183 |
| Differential Travel | 4 Degree |
| Directory | CIS |
| Electrical Connection | Screw-clamp terminals AWG 22...AWG 12), 12 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250;NEMA 2/4/6/6P/12/13, IP67 |
| Environmental Conditions | LOW TEMPERATURE |
| Families | 2183 |
| Family Description | Heavy Duty Limit Switches |
| Function Available | Neutral position |
| Head Material | Zinc |
| Head Type | Rotary head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | NEMA limit switch, 9007C, heavy duty, standard, neutral position, standard pretravel, 10A, 600V, 2NO/2NC, NEMA 4, 6P, 13;LIMIT SWITCH |
| Item Number | 71860 |
| Long Description | HEAVY DUTY INDUSTRIAL LIMIT SWITCH, INDUSTRIAL, HEAVY DUTY, PLUG-IN TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE |
| MSDS Form Number | * |
| Material | Metal |
| Minimum Torque For Tripping | 4.0 | |
| Model | 9007C |
| Mounting | By the body |
| Movement Of Operating Head | Rotary |
| Noun | * |
| Number Of Poles | 2.0 |
| Operating Cycles | 1M |
| Operating Force | 4 Inch-Pound |
| Operating Temperature | -40-185 AF LOW TEMPERATURE;-40 to 185 Deg F |
| Operation Type | Clockwise/Counter Clockwise, Spring Return, Snap Action |
| Positive Opening | Without |
| Pretravel | 10 Degree |
| Product Description | Limit Switch 600V 10Amp C +Options |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 |
| Series Name | Heavy duty |
| Size | 2.5 in |
| Special Features | without |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007C |
| Switch Function | 2 SPDT-DB |
| Terminals Description Iso N 1 | (3-4)NO;(7-8)NO;(1-2)NC;(5-6)NC |
| Total Travel | 90 Degree |
| Type | Limit switch;Industrial, Heavy Duty, Plug-In |
| Type Of Approach | Lateral approach, 2 directions |
| UNSPSC | 39122213 |
| UPC | 78590171860 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA |
