SQD 9007C68T10Y247

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

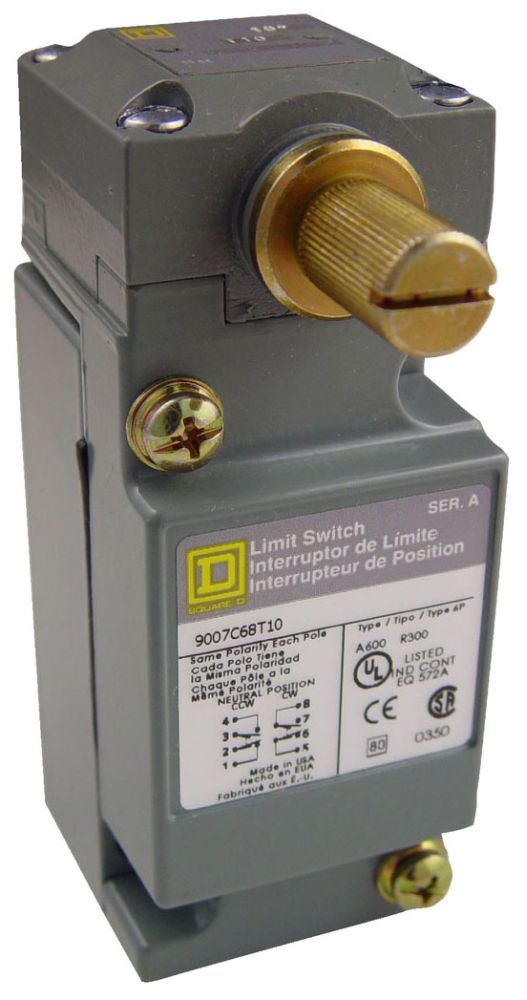

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590115272

Part Number: 9007C68T10Y247

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007C68T10Y247
Actuator Head Type ROTARY LEVER
Additional Information APPLICABLE STANDARD IEC 60947, EN 60947-1/60947-5-1, NEMA 250; FEATURES OIL TIGHT, WATER TIGHT
Application standard box
Approval UL, CSA, CE
Base Price 0.0000
Body Material ZAMAK[R] ZINC ALLOY
Body Plate Style metal
Body Type plug-in
Catalog Number 9007C68T10Y247
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection screw-clamp terminals
Connection Type 1/2 INCH-14 TPI NPT CONDUIT
Contact Configuration DPDT, 2NO-2NC
Contact Rating 600 VAC 10 AMPERE, 600 VDC 1 AMPERE
CountryOfOrigin MX
DDCATEGORY 2183
Differential Travel 4 DEG
Directory CIS
Enclosure NEMA 2/4/6/6P/12/13, IP67
Families 2183
Family Description Heavy Duty Limit Switches
Head Type rotary
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH
Item Number 15272
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG IN TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007C68
Noun *
Operating Force 4 LB-INCH
Operating Temperature -20 TO 185 DEG F
Operation Type CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION
Operator Profile rotary head
Pretravel 10 DEG
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 90 DEG
Type limit switch;HEAVY DUTY, INDUSTRIAL, PLUG IN
Type Of Operator L100/300 lever
UNSPSC 39122213
UPC 78590115272
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007C68T10Y247
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
