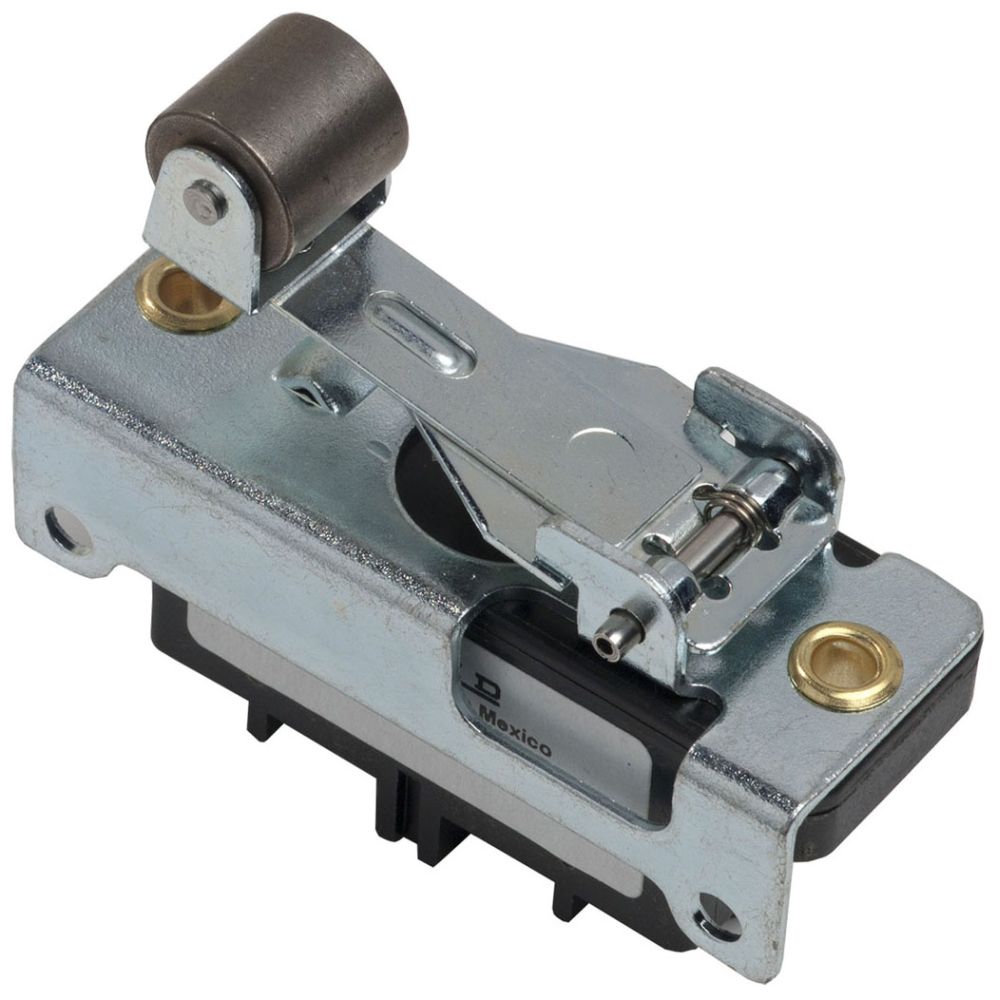

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007CB33S1 |
| Action | Linear;Snap action |
| Actuating Force | 0.5lbf;0.5lbf |
| Actuator | "Traverse approach, 2 directions;Cast zinc;Spring return roller lever plunger metal LH bracket + 0.47"" roller;Plunger head" |
| Actuator Head Type | Rigid Roller Lever |
| Additional Information | Contact Material Silver Alloy; Wire Size 22 to 14 AWG; Roller Width 0.47 Inch; Lever Length 1/4 Inch |
| Amperage Rating | 0.6 A 600 V AC, B600 NEMA RATING DESIGNATION-0.75 A 480 V AC, B600 NEMA RATING DESIGNATION-1.5 A 240 V AC, B600 NEMA RATING DESIGNATION-3 A 120 V AC, B600 NEMA RATING DESIGNATION-0.1 A 250 V DC-0.2 A 125 V DC,10 A |
| Application | Industrial Control |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body Type | Fixed |
| Brand Name | 9007 |
| Catalog Number | 9007CB33S1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46150 |
| Commodity Description | Miniature & Snap Action Limit Switches |
| Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Contact Configuration | Form ZZ;2(NC-NO) DPDT-DB;2NO-2NC |
| Contact Material | Silver |
| Contacts Material | Silver contacts |
| Contacts Type And Composition | 2(NC-NO) DPDT-DB NULL |
| CountryOfOrigin | MX |
| Current Rating | 10 Ampere |
| DDCATEGORY | 2185 |
| Differential Travel | 0.08 Inch |
| Directory | CIS |
| Electrical Connection | 12 6 binder head screw terminals AWG 22...AWG 14) NULL |
| Enclosure | NEMA 1 NEMA TYPE 250 |
| Families | 2185 |
| Family Description | Miniature & Snap Action Limit Switches |
| Height | 2.5 in |
| Ie Rated Operational Current | 0.6A 600 V AC, B600 NEMA rating designation;0.75A 480 V AC, B600 NEMA rating designation;1.5A 240 V AC, B600 NEMA rating designation;3A 120 V AC, B600 NEMA rating designation;0.1A 250 V DC;0.2A 125 V DC |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Snap switch, 9007CB, metal spring return roller lever plunger, 2NO/2NC, customer special;SNAP SWITCH 600V |
| Item Number | 04724 |
| Ithe Cnvtl Enclosed Therm Crrt | 10 A |
| Long Description | SNAP SWITCH, 2.5 INCH L X 0.95 INCH W SIZE; 2NO-2NC CONTACT CONFIGURATION; UL, CSA, CE APPROVAL; INDUSTRIAL CONTROL APPLICATION; 600 V VOLTAGE RATING; 10 AMPERE CURRENT RATING; SCREW CLAMP TERMINAL TYPE; 8 OZ OPERATING FORCE |
| MSDS Form Number | * |
| Material | Cast zinc;Metal |
| Model | 9007C |
| Mounting | -;By the body |
| Noun | * |
| Number Of Poles | 2.0 |
| Number Of Steps | 1.0 |
| Operating Force | 8 Oz |
| Operating Temperature | -20-185 AF |
| Over Travel | 0.06 Inch |
| Positive Opening | Without |
| Pretravel | 0.16 Inch |
| Product Description | Snap Switch 600V 10Amp Cb +Options |
| Product Keywords | WEBREADY |
| Product Name | Snap switch |
| Product Weight | 1.5 lb |
| ProductLine | SQD |
| Rated Insulation Voltage | 600 V 3)UL 508 contact block;600 VCSA C22.2 No 14 contact block | |
| Series Name | Heavy duty |
| Size | 2.54 in;2.5 Inch L x 0.95 Inch W |
| Special Features | 1...2 CABLES FOR 6 BINDER HEAD SCREW TERMINALS (AWG 22...AWG 14),IP20 CONFORMING TO IEC 60529 |
| Standard | IP20 IEC 60529 |
| Sub Brand | 9007AO/CO |
| Switch Actuation | By 30 cam |
| Terminal Type | Screw Clamp |
| Terminals Description Iso N 1 | (5-6)NC;(1-2)NC;(3-4)NO;(7-8)NO |
| Terminals Description Iso N1 | (5-6)NC;(1-2)NC;(3-4)NO;(7-8)NO |
| Type | Snap limit switch |
| Type Of Approach | Traverse approach, 2 directions NULL |
| Type Of Operator | "Spring return roller lever plunger metal LH bracket + 0.47"" roller" NULL |
| UNSPSC | 39122209 |
| UPC | 78590104724 |
| Ui Rated Insulation Voltage | 600V 3)UL 508 contact block;600VCSA C22.2 No 14 contact block |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 V |
