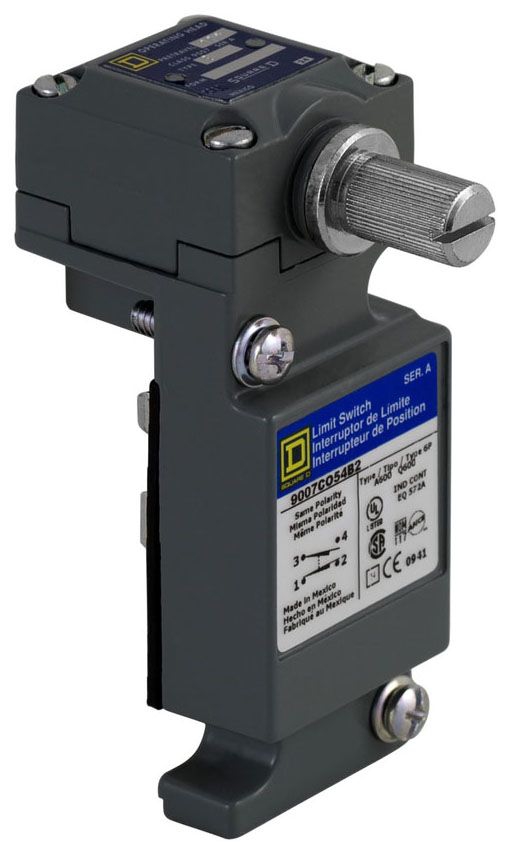

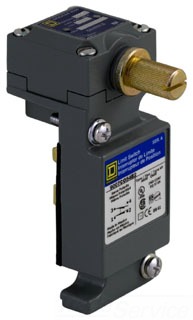

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007CO54B2 |
| Action | Snap action;CW and CCW;Standard pre-travel |
| Actuator | Spring return lever arm to be ordered separately |
| Actuator Head Type | Rotary Lever Arm |
| Additional Information | Applicable Standard IEC 60947, EN 60947-1/60947-5-1; Features Oil Tight, Water Tight |
| Amperage Rating | 10 A |
| Application | 9007C,HEAVY DUTY,ROTARY HEAD |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body | Zinc alloy |
| Body Material | Zinc alloy;Zamak Zinc Alloy |
| Brand Name | 9007 |
| Catalog Number | 9007CO54B2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46180 |
| Commodity Description | Limit Switch Bodies |
| Connection Type | 1/2 Inch-14 TPI NPT Conduit |
| Contact Configuration | NC-NO;Form Z;SPDT, 1NO-1NC |
| Contact Form | Form Z |
| Contact Material | Silver Alloy |
| Contact Rating | NEMA A600/Q600;600 VAC 10 Ampere, 600 VDC 2.5 Ampere |
| Contacts Material | Silver alloy (Ag/Ni) |
| CountryOfOrigin | MX |
| DDCATEGORY | 2188 |
| Depth | 1.79 in| |
| Differential Travel | 4 Deg |
| Directory | CIS |
| Enclosure | NEMA 1/2/4X/6/6P/12/13 NEMA TYPE 250;NEMA 1/2/4/6/6P/12/13, IP67 |
| Families | 2188 |
| Family Description | Limit Switch Bodies |
| Head Type | Rotary head |
| Height | 3.14 in |
| Ie Rated Operational Current | 10A 120 V AC, A600 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | NEMA limit switch, 9007C, heavy duty, standard, plug in body, spring return lever head, 10A, 600V, 1NO/1NC;LIMIT SWITCH PLUG IN |
| Item Number | 53071 |
| Local Display | Without |
| Long Description | HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG-IN TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE |
| MSDS Form Number | * |
| Model | 9007CO54 |
| Noun | * |
| Operating Force | 4 Lb-Inch |
| Operating Temperature | -20F TO 185F;-20 to 185 Deg F |
| Operation Type | Clockwise/Counter Clockwise, Spring Return, Snap Action |
| Pretravel | 10 Deg |
| Product Description | Limit Switch Plug In Body 600V 10A C |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| Product Weight | 1.25 lb |
| ProductLine | SQD |
| Provided Equipment | Without receptacle |
| Rated Insulation Voltage | 600 VCE;600 VCSA;600 VUL 508 |
| Rated Operational Current | 10 A 120 V AC, A600 |
| Series Name | Heavy duty |
| Size | 1.79 in |
| Special Features | IP67 CONFORMING TO IEC 60529 |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007C |
| Switch Function | SPDT-DB |
| Terminals Description Iso N 1 | (3-4)NO;(1-2)NC |
| Terminals Description Iso N1 | (3-4)NO;(1-2)NC |
| Torque Value | 4.0 |
| Total Travel | 90 Deg |
| Type | Limit switch plug-in unit;Heavy Duty, Industrial, Plug-In |
| Type Of Operator | Spring return lever arm to be ordered separately |
| UNSPSC | 39122213 |
| UPC | 78590153071 |
| Ui Rated Insulation Voltage | 600VCE;600VCSA;600VUL 508 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 10 A 120 V AC, A600 |
| Width | 1.55 in |
