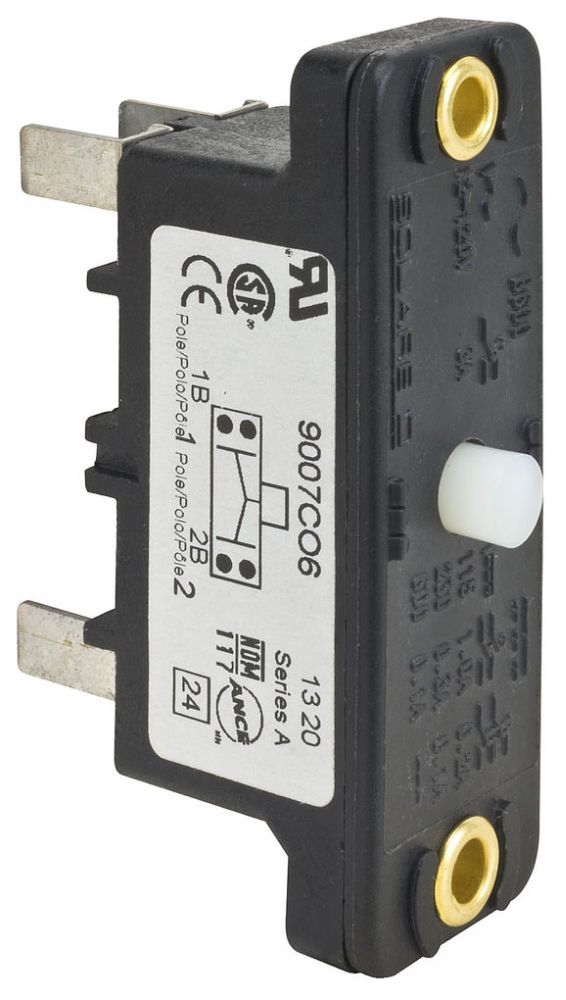

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007CO6 |
| Action | Linear;Snap action |
| Actuating Force | 0.75lbf;0.44lbf |
| Actuator | Vertical approach, 1 direction;Cast zinc;Spring return plunger plastic with thermoplastic end;Plunger head |
| Actuator Head Type | PLUNGER HEAD |
| Additional Information | WIRE SIZE 22 TO 14 AWG |
| Amperage Rating | 0.1 A 600 V DC, Q600 NEMA RATING DESIGNATION-0.6 A 600 V AC, B600 NEMA RATING DESIGNATION-0.75 A 480 V AC, B600 NEMA RATING DESIGNATION-1.5 A 240 V AC, B600 NEMA RATING DESIGNATION-3 A 120 V AC, B600 NEMA RATING DESIGNATION-0.3 A 250 V DC, Q600 NEMA RATING DESIGNATION-1 A 125 V DC, Q600 NEMA RATING DESIGNATION,10 A |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body Type | Plug-in |
| Brand Name | 9007 |
| Catalog Number | 9007CO6 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46150 |
| Commodity Description | Miniature & Snap Action Limit Switches |
| Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Connection Type | 1/2 INCH NPT CONDUIT |
| Contact Configuration | Form AA;2 NO DPST-NO-DB;DPDT, 2NO |
| Contact Material | Silver |
| Contact Rating | 600 VAC/VDC 10 AMPERE |
| Contacts Material | Silver contacts |
| Contacts Type And Composition | 2 NO DPST-NO-DB |
| CountryOfOrigin | MX |
| DDCATEGORY | 2185 |
| Directory | CIS |
| Electrical Connection | 12 6 binder head screw terminals AWG 22...AWG 14) |
| Enclosure | NEMA 1 NEMA TYPE 250;NEMA 1/2/4/6/6P/12/13, IP67 |
| Families | 2185 |
| Family Description | Miniature & Snap Action Limit Switches |
| Height | 2.5 in |
| Ie Rated Operational Current | 0.1A 600 V DC, Q600 NEMA rating designation;0.6A 600 V AC, B600 NEMA rating designation;0.75A 480 V AC, B600 NEMA rating designation;1.5A 240 V AC, B600 NEMA rating designation;3A 120 V AC, B600 NEMA rating designation;0.3A 250 V DC, Q600 NEMA rating designation;1A 125 V DC, Q600 NEMA rating designation |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Snap basic limit switch, 9007, plunger, 2 NO, plug in;SNAP SWITCH 600V 10AMP |
| Item Number | 80951 |
| Ithe Cnvtl Enclosed Therm Crrt | 10 A |
| Long Description | SNAP ACTION INDUSTRIAL SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG IN TYPE; DPDT, 2NO CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE; 600 VAC/VDC 10 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Material | Cast zinc;Metal |
| Model | 9007C |
| Mounting | -;By the body |
| Noun | * |
| Number Of Poles | 2.0 |
| Number Of Steps | 1.0 |
| Operating Temperature | -20-185 AF;-20 TO 185 DEG F |
| Operation Type | CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION |
| Positive Opening | Without |
| Product Description | Snap Switch 600V 10Amp Co +Options |
| Product Keywords | WEBREADY |
| Product Name | Snap switch |
| Product Weight | 0.5 lb |
| ProductLine | SQD |
| Rated Insulation Voltage | 600 V 3)UL 508 contact block;600 VCSA C22.2 No 14 contact block |
| Rated Operational Current | 0.1 A 600 V DC, Q600 NEMA rating designation;0.6 A 600 V AC, B600 NEMA rating designation;0.75 A 480 V AC, B600 NEMA rating designation;1.5 A 240 V AC, B600 NEMA rating designation;3 A 120 V AC, B600 NEMA rating designation;0.3 A 250 V DC, Q600 NEMA rating designation;1 A 125 V DC, Q600 NEMA rating designation | |
| Series Name | Heavy duty |
| Size | 1.14 in |
| Special Features | 1...2 CABLES FOR 6 BINDER HEAD SCREW TERMINALS (AWG 22...AWG 14),IP20 CONFORMING TO IEC 60529 |
| Standard | IP20 IEC 60529 |
| Sub Brand | 9007AO/CO |
| Switch Actuation | On end |
| Terminals Description Iso N 1 | (7-8)NO;(3-4)NO |
| Terminals Description Iso N1 | (7-8)NO;(3-4)NO |
| Type | Snap basic limit switch;HEAVY DUTY, INDUSTRIAL, PLUG IN |
| Type Of Approach | Vertical approach, 1 direction |
| Type Of Operator | Spring return plunger plastic with thermoplastic end |
| UNSPSC | 39122209 |
| UPC | 78590180951 |
| Ui Rated Insulation Voltage | 600V 3)UL 508 contact block;600VCSA C22.2 No 14 contact block |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
