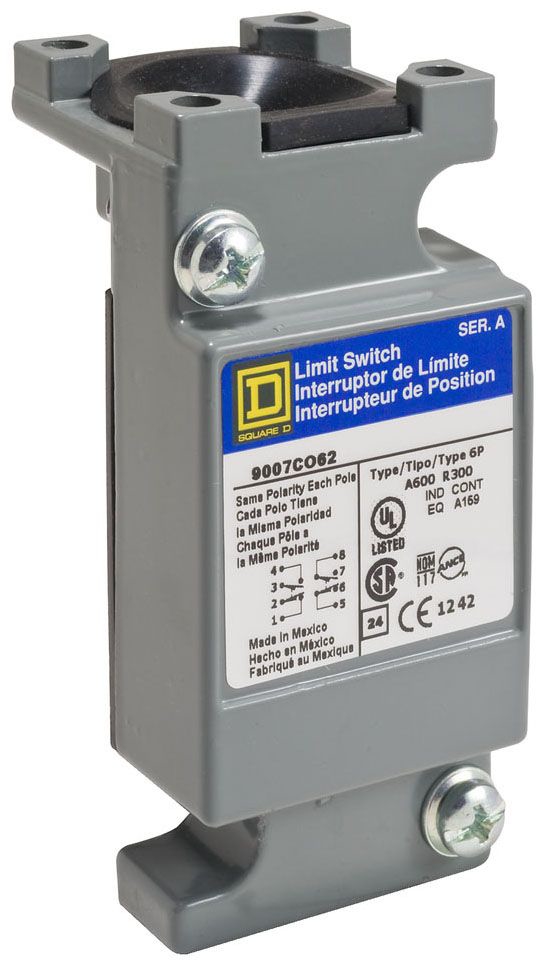

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007CO62 |
| Action | Snap action |
| Actuator Head Type | Plunger/Rotary |
| Ambient Air Temp For Op | -20185F (-2985C) standard environment |
| Amperage Rating | 10 A |
| Application | 9007C |
| Approval | UL, CSA, CE |
| Associated Connec Component | 9007CT62 |
| Associated Head | 9007C |
| Base Price | 0.0000 |
| Body Material | Zinc |
| Body Type | Standard plug-in |
| Brand Name | 9007 |
| Catalog Number | 9007CO62 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46180 |
| Commodity Description | Limit Switch Bodies |
| Contact Configuration | 2(NC-NO);Form ZZ;DPDT, 2NO-2NC |
| Contact Form | Form ZZ |
| Contact Material | Silver |
| Contact Rating | NEMA A600/R300;600 V at 10 Ampere |
| Contacts Material | Silver contacts |
| CountryOfOrigin | MX |
| DDCATEGORY | 2188 |
| Directory | CIS |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250;NEMA 1/2/4/6/6P/12/13, IP67 |
| Environmental Conditions | Standard environment |
| Families | 2188 |
| Family Description | Limit Switch Bodies |
| Function Available | - |
| Ie Rated Operational Current | 1.2A 600 V AC, A600 NEMA rating designation;1.5A 480 V AC, A600 NEMA rating designation;3A 240 V AC, A600 NEMA rating designation;6A 120 V AC, A600 NEMA rating designation;0.11A 250 V DC, R300 NEMA rating designation;0.55A 125 V DC, R300 NEMA rating designation |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch plug in unit, 9007, 600v10amp c;LIMIT SWITCH PLUG IN |
| Item Number | 50085 |
| Ithe Cnvtl Enclosed Therm Crrt | 10 A |
| Local Display | Without |
| Long Description | LIMIT SWITCH BODY, HEAVY DUTY, PLUG-IN TYPE; ZINC ALLOY MATERIAL; 9007C SERIES LIMIT SWITCH USED ON; DPDT, 2NO-2NC CONTACT CONFIGURATION; SNAP ACTION OPERATION TYPE; 600 V AT 10 AMPERE CONTACT RATING; UL, CSA, CE APPROVAL |
| MSDS Form Number | * |
| Material | Zinc Alloy |
| Model | 9007C |
| Noun | * |
| Number Of Poles | 2.0 |
| Number Of Steps | 1.0 |
| Operating Cycles | 1M |
| Operating Temperature | -20-185 AF STANDARD ENVIRONMENT;-20 to 185 Deg F |
| Operation Type | Snap Action |
| Positive Opening | Without |
| Product Description | Limit Switch Plug In Body 600V 10A C |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 |
| Series Name | Heavy duty |
| Short Circuit Protection | 10 A CC non-time delay | |
| Size | 1.79 in |
| Special Features | -,STANDARD PLUG-IN |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007C |
| Switch Function | DPDT-DB |
| Type | Limit switch plug-in unit;Heavy Duty, Plug-In |
| UNSPSC | 39122213 |
| UPC | 78590150085 |
| Ui Rated Insulation Voltage | 600V 3)UL 508 contact block;600VCSA C22.2 No 14 |
| Uimp Rated Imp Wstd Voltage | 2.5kV AC 1 min CE;2.2kV AC 1 min UL;2.64kV AC 1 s CSA |
| Used On | 9007C Series Limit Switch |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA RATING DESIGNATION-1.5 A 480 V AC, A600 NEMA RATING DESIGNATION-3 A 240 V AC, A600 NEMA RATING DESIGNATION-6 A 120 V AC, A600 NEMA RATING DESIGNATION-0.11 A 250 V DC, R300 NEMA RATING DESIGNATION-0.55 A 125 V DC, R300 NEMA RATING DESIGNATION |
