SQD 9007CO62B2

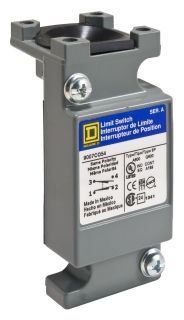

Limit Switch Plug In Body 600V 10A C

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Plug In Body 600V 10A C

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Plug In Body 600V 10A C

UPC:  78590153072

Part Number: 9007CO62B2

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007CO62B2
Action CW AND CCW,SNAP ACTION,STANDARD PRE-TRAVEL
Actuator LEVER ARM (ORDERED SEPARATELY) CW AND CCW
Actuator Head Type Rotary Lever Arm
Additional Information Applicable Standard IEC 60947, EN 60947-1/60947-5-1; Features Oil Tight, Water Tight
Amperage Rating 10 A
Application C,HEAVY DUTY
Approval UL, CSA, CE
Base Price 0.0000
Body Material Zamak Zinc Alloy
Brand Name Square D
Catalog Number 9007CO62B2
Commerce Sector Construction Materials
Commodity Code 46180
Commodity Description Limit Switch Bodies
Connection Type 1/2 Inch-14 TPI NPT Conduit
Contact Configuration 2 NO/2 NC FORM ZZ - DPDT-DB;DPDT, 2NO-2NC
Contact Rating NEMA A600/R300;600 VAC 10 Ampere, 600 VDC 1 Ampere
CountryOfOrigin MX
DDCATEGORY 2188
Differential Travel 4 Deg
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2188
Family Description Limit Switch Bodies
Image Location * Image
Industry ELX
InvoiceDescription LIMIT SWITCH PLUG IN BODY 600V 10A C;LIMIT SWITCH PLUG IN
Item Number 53072
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, PLUG-IN TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007CO62
Noun *
Operating Force 4 Lb-Inch
Operating Temperature -20-185 AF;-20 to 185 Deg F
Operation Type Clockwise/Counter Clockwise, Spring Return, Snap Action
Pretravel 10 Deg
Product Description Limit Switch Plug In Body 600V 10A C
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standard CSA-CE-UL LISTED
Sub Brand C
Total Travel 90 Deg
Type STANDARD,TURRET HEAD ROTARY LEVER TYPE C;Heavy Duty, Industrial, Plug-In
UNSPSC 39122213
UPC 78590153072
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V

Resources

CatalogNumber 9007CO62B2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
