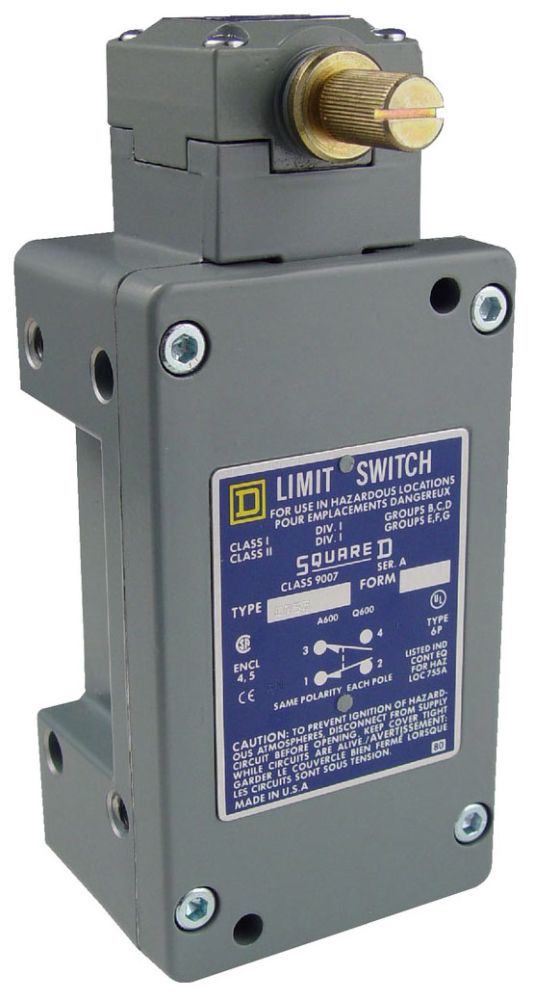

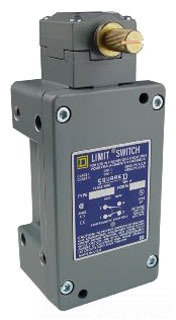

SQD 9007CR53C

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590185715

Part Number: 9007CR53C

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007CR53C
Actuator Head Type Rotary Lever
Additional Information Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Features Oil Tight, Water Tight
Application hazardous location box
Approval UL, CSA, CE
Base Price 0.0000
Body Material Die-Cast Zinc
Body Plate Style metal
Body Type fixed
Catalog Number 9007CR53C
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection screw-clamp terminals
Connection Type 1/2 Inch-14 TPI NPT Conduit
Contact Configuration SPDT, 1NO-1NC
Contact Rating 600 VAC 10 Ampere, 600 VDC 2.5 Ampere
CountryOfOrigin MX
DDCATEGORY 2183
Directory CIS
Enclosure NEMA 2/4/6P/7/9/13
Families 2183
Family Description Heavy Duty Limit Switches
Head Type rotary
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 85715
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, NON-PLUG-IN, HAZARDOUS LOCATION TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE (TRIP)/COUNTER CLOCKWISE (RESET), MAINTAINED OPERATION TYPE
MSDS Form Number *
Model 9007CR53
Noun *
Operating Force 3 Lb-Inch
Operating Temperature -20 to 185 Deg F
Operation Type Clockwise (Trip)/Counter Clockwise (Reset), Maintained
Operator Profile rotary head
Pretravel 45 Deg
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 90 Deg
Type limit switch;Heavy Duty, Industrial, Non-Plug-In, Hazardous Location
Type Of Operator 9007C lever
UNSPSC 39122213
UPC 78590185715
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007CR53C
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
