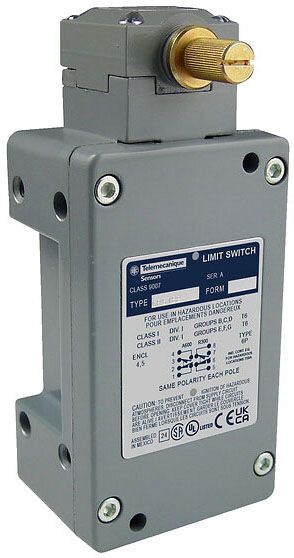

SQD 9007CR65B2S9

Limit Switch 600V 10Amp C Special

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C Special

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C Special

UPC:  78590134836

Part Number: 9007CR65B2S9

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007CR65B2S9
Actuator Head Type ROTARY LEVER
Additional Information APPLICABLE STANDARD IEC 60947, EN 60947-1/60947-5-1, NEMA 250; FEATURES OIL TIGHT, WATER TIGHT; WITH OPTIONAL SHAFT AND HUB COMBINATION
Approval UL, CSA, CE
Base Price 0.0000
Body Material DIE CAST ZINC
Catalog Number 9007CR65B2S9
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection Type 1/2 INCH-14 TPI NPT CONDUIT
Contact Configuration DPDT, 2NO-2NC
Contact Rating 600 VAC 10 AMPERE, 250 VDC 1 AMPERE
CountryOfOrigin CH
DDCATEGORY 2183
Differential Travel 4 DEG
Directory CIS
Enclosure NEMA 2/4/6P/7/9/13
Families 2183
Family Description Heavy Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C Special;LIMIT SWITCH 600V
Item Number 34836
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, NON PLUG IN, HAZARDOUS LOCATION TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007CR65
Noun *
Operating Force 4 LB-INCH
Operating Temperature -20 TO 185 DEG F
Operation Type CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION
Pretravel 10 DEG
Product Description Limit Switch 600V 10Amp C Special
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 90 DEG
Type HEAVY DUTY, INDUSTRIAL, NON PLUG IN, HAZARDOUS LOCATION
UNSPSC 39122213
UPC 78590134836
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007CR65B2S9
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
