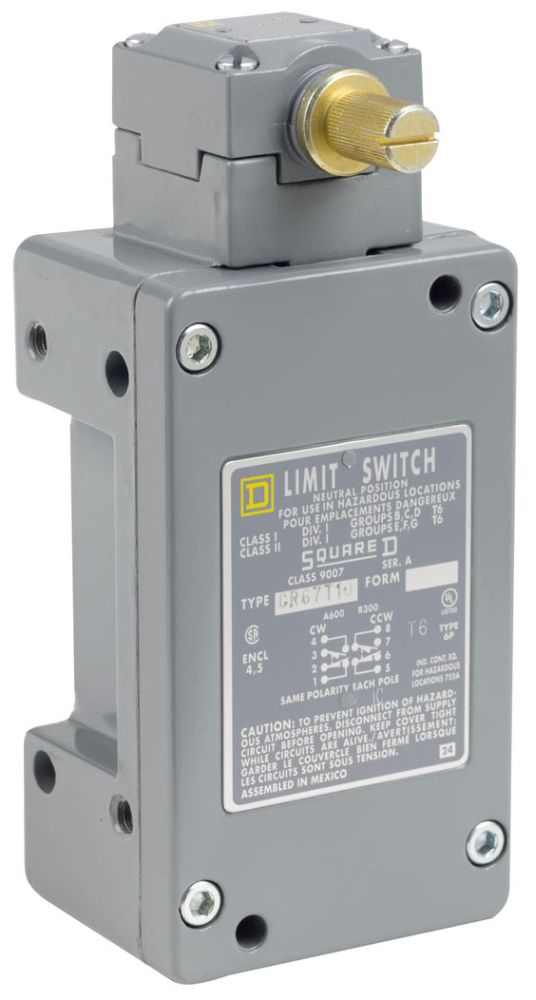

SQD 9007CR67T10

Limit Switch 600V 10Amp C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600V 10Amp C +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600V 10Amp C +Options

UPC:  78590196084

Part Number: 9007CR67T10

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007CR67T10
Actuator Head Type Rotary Lever
Additional Information Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250; Features Oil Tight, Water Tight
Approval UL, CSA, CE
Base Price 0.0000
Body Material Die-Cast Zinc
Catalog Number 9007CR67T10
Commerce Sector Construction Materials
Commodity Code 46130
Commodity Description Heavy Duty Limit Switches
Connection Type 1/2 Inch-14 TPI NPT Conduit
Contact Configuration DPDT, 2NO-2NC
Contact Rating 600 VAC 10 Ampere, 250 VDC 1 Ampere
CountryOfOrigin FR
DDCATEGORY 2183
Differential Travel 4 Deg
Directory CIS
Enclosure NEMA 2/4/6P/7/9/13
Families 2183
Family Description Heavy Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600V 10Amp C +Options;LIMIT SWITCH 600V
Item Number 96084
Long Description HEAVY DUTY INDUSTRIAL LIMIT SWITCH, HEAVY DUTY, INDUSTRIAL, NON-PLUG-IN, HAZARDOUS LOCATION TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN, SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007CR67
Noun *
Operating Force 4 Lb-Inch
Operating Temperature -20 to 185 Deg F
Operation Type Clockwise/Counter Clockwise, Spring Return, Snap Action
Pretravel 10 Deg
Product Description Limit Switch 600V 10Amp C +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 90 Deg
Type Heavy Duty, Industrial, Non-Plug-In, Hazardous Location
UNSPSC 39122213
UPC 78590196084
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007CR67T10
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
