SQD 9007DA1M

Limit Switch Lever Arm 2.5 In C

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm 2.5 In C

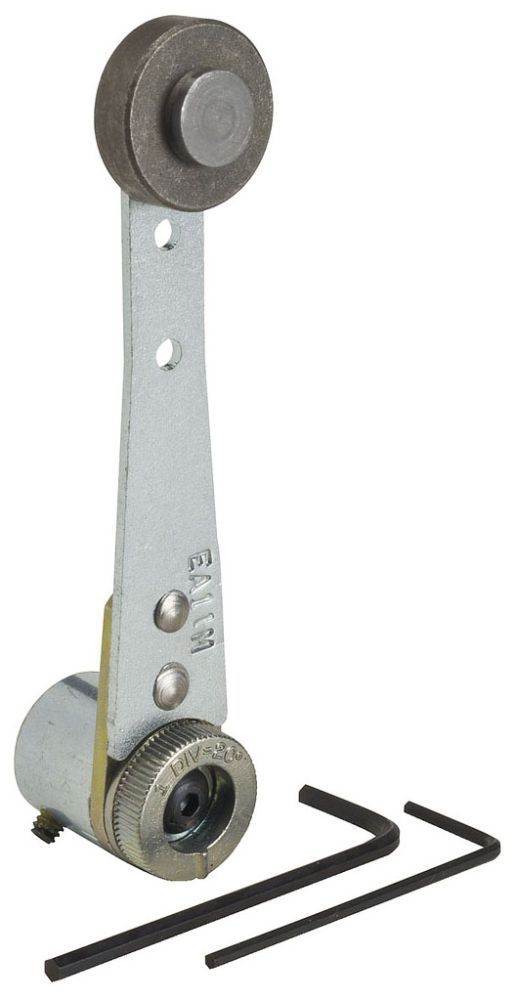

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm 2.5 In C

UPC:  78590182541

Part Number: 9007DA1M

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007DA1M
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return 360 adjustable roller lever 2.5-2.5 in - to pass over switch cover
Additional Information OPERATING TEMPERATURE -20 TO 185 DEG F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007AW;9007C
Associated Head 9007C;9007T5;9007T10;9007N;9007A;9007B
Base Price 0.0000
Brand Name 9007
Catalog Number 9007DA1M
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, 9007C zinc, fixed length, outside steel roller;LIMIT SWITCH LEVER ARM
Item Number 82541
Lever Length Radius 2.5 INCH
Lever Material CAST ZINC
Lever Type ADJUSTABLE
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 2.5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 0.63 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; CAST ZINC LEVER MATERIAL; ADJUSTABLE LEVER TYPE
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm 2.5 In C
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.63 INCH
Roller Material STEEL
Roller Mounting Location FRONT
Roller Type STANDARD
Roller Width 0.25 INCH
Series Name Heavy duty
Size 2.50 INCHES 0.63 X 0.25 INCHES
Special Features 1 steel outside roller (convertible) 0.63 in 0.25 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return 360 adjustable roller lever 2.5in (63.50mm) - to pass over switch cover NULL
Type Of Roller 1 steel outside roller (convertible) 0.63in (16.00mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590182541
Used On 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007DA1M
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
