SQD 9007EA1S

Limit Switch Lever Arm 3 In C

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm 3 In C

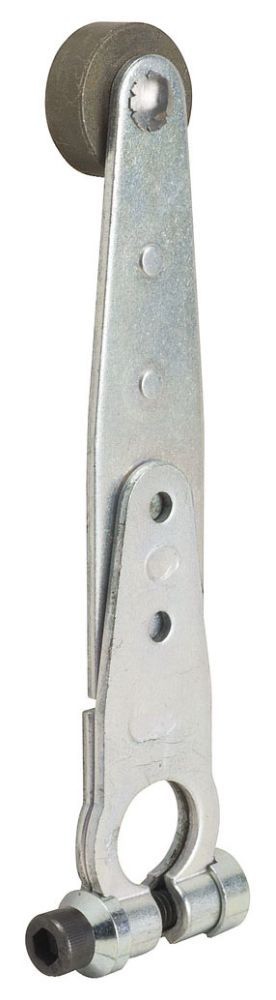

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm 3 In C

UPC:  78590179461

Part Number: 9007EA1S

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007EA1S
Action Lateral approach;By 30 cam
Actuator Flat steel spring return roller lever 3-3 in - -
Additional Information Operating Temperature -20 to 185 Deg F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007T10;9007T5;9007N;9007A;9007B;9007C
Base Price 0.0000
Brand Name 9007
Catalog Number 9007EA1S
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
CountryOfOrigin MX
DDCATEGORY 2186
Device Short Name 9007C NULL
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm 3in c;LIMIT SWITCH LEVER ARM
Item Number 79461
Lever Length Radius 3 Inch
Lever Material Steel
Lever Type Flat, Spring Return, Fixed Length
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 3 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 0.63 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; STEEL LEVER MATERIAL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm 3 In C
Product Keywords WEBREADY
Product Name Limit switch
Product Or Component Type Limit switch lever NULL
Product Weight 0.1 lb
ProductLine SQD
Range Of Product 9007 NULL
Roller Diameter 0.63 Inch
Roller Material Steel
Roller Mounting Location Front
Roller Type Standard
Roller Width 0.25 Inch
Series Name Heavy duty
Size 3.00 INCHES 0.63 X 0.25 INCHES
Special Features 1 steel outside roller 0.63 in 0.25 in
Sub Brand 9007C
Switch Actuation By 30 cam NULL
Type Limit switch lever
Type Of Approach Lateral approach NULL
Type Of Operator Flat steel spring return roller lever 3in (76.20mm) - - NULL
Type Of Roller 1 steel outside roller 0.63in (16.00mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590179461
Used On 9007C Heavy Duty Industrial Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007EA1S
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
