SQD 9007F6

Limit Switch Lever Arm T+Ft+Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm T+Ft+Options

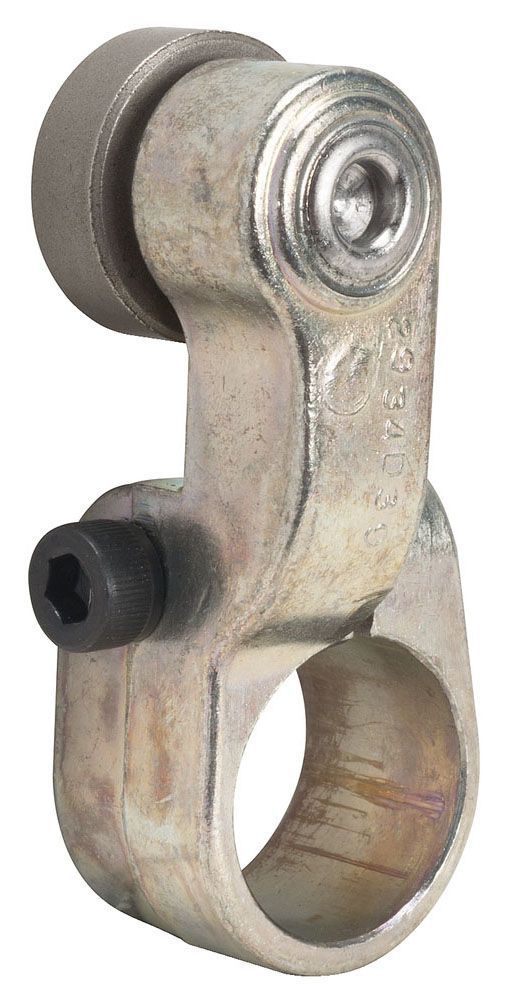

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm T+Ft+Options

UPC:  78590176020

Part Number: 9007F6

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007F6
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 1.88-1.88 in 0.75 in -
Application SEVERE DUTY 9007T/FT 9007T9007FT9007C..S9
Associated Complete Product 9007T;9007FT;9007C..S9
Associated Head 9007AS9;9007T5S9;9007T10S9;9007BS9;9007NS9;9007CS9
Base Price 0.0000
Brand Name 9007
Catalog Number 9007F6
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm f+fc +options;LIMIT SWITCH LEVER ARM
Item Number 76020
Lever Length Radius 1.88 INCH
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 1.88 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 1.38 INCH ROLLER DIAMETER; OFFSET ROLLER TYPE; BACK ROLLER MOUNTING LOCATION; 9007 MODEL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -10...185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm T+Ft+Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 1.38 INCH
Roller Material STEEL
Roller Mounting Location BACK
Roller Type OFFSET
Roller Width 0.25 INCH
Series Name Severe duty
Size 1.88 INCHES 1.38 X 0.25 INCHES
Special Features 1 steel inside offset roller 1.38 in 0.25 in
Sub Brand 9007T/FT
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 1.88in (47.75mm) 0.75 in - NULL
Type Of Roller 1 steel inside offset roller 1.38in (35.05mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590176020
Used On 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007F6
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
