SQD 9007FTSB1M11

Limit Switch 600Vac 20Amp Ft +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 20Amp Ft +Options

Mouse over image to zoom, click to enlarge

Description:

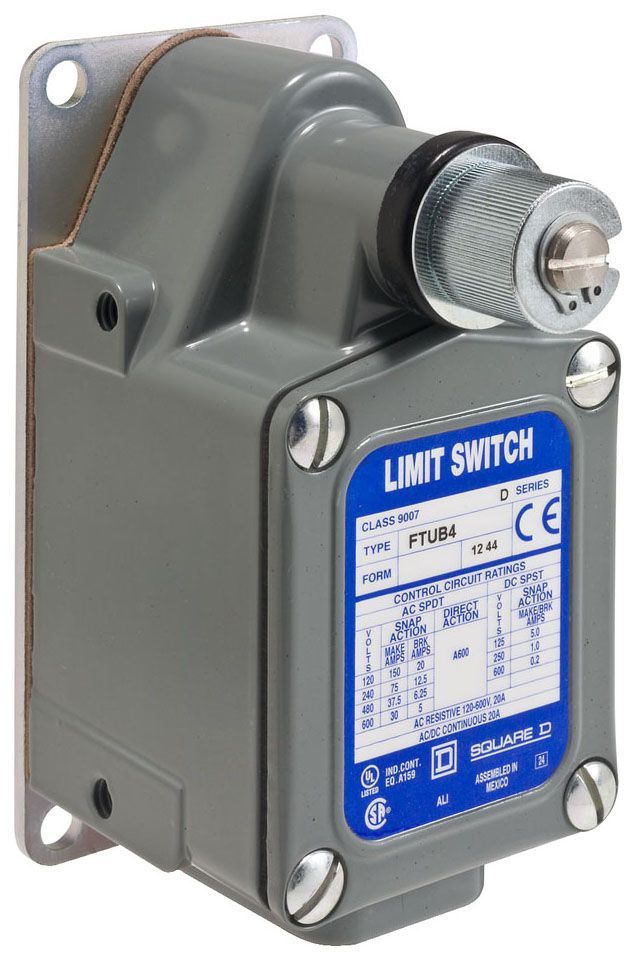

Limit Switch 600Vac 20Amp Ft +Options

UPC:  78590129123

Part Number: 9007FTSB1M11

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007FTSB1M11
Actuator Head Type SIDE ROTARY
Additional Information ENCLOSURE TYPE FOUNDRY CASTING; CONTACT SWITCH TYPE 3 POINT STANDARD; BASE PLATE TYPE RECTANGULAR END MOUNTING HOLE
Application standard foundry switch
Approval UL 508, CSA, CE
Base Plate Style style B
Base Price 0.0000
Body Material cast zinc;DIE CAST ZINC
Body Type fixed
Cable Entry 1 entry for M20 - 20 mm BS 4568
Catalog Number 9007FTSB1M11
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type M20 CONNECTOR
Contact Configuration SPDT, 1NO-1NC
Contact Designation 600 V AC A600 NEMA rating designation
Contact Form Form Z
Contact Operation snap action
Contact Rating 600 VAC/VDC 20 AMPERE
Contacts Material silver flashed copper
Conventional Enclosed Thermal Current 20 A
CountryOfOrigin MX
DDCATEGORY 2184
Differential Travel 12 DEG
Directory CIS
Electrical Connection screw clamp terminal AWG 22...AWG 12
Enclosure NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Fixing Mode by the body
Head Type rotary head
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 20Amp Ft +Options;LIMIT SWITCH
Item Number 29123
Long Description LIMIT FOUNDRY SWITCH, SEVERE DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; M20 CONNECTOR CONNECTION TYPE; SNAP ACTION OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING; UL 508, CSA, CE APPROVAL
MSDS Form Number *
Maximum Actuation Speed 130 ft/min with 30 cam angle, levers only
Maximum Displacement Angle 89
Model 9007FT
Movement Of Operating Head rotary
Noun *
Operating Temperature -10 TO 185 DEG F
Operation Type SNAP ACTION
Positive Opening without
Pretravel 14 DEG
Product Description Limit Switch 600Vac 20Amp Ft +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Rated Insulation Voltage 600 V 3 5 A
Repeat Accuracy in linear travel of cam on 1.5 in lever arm +/- 0.004
Switch Actuation from left or right
Switch Function SPDT-DB
Total Travel 89 DEG
Tripping Angle 14
Type limit switch;SEVERE DUTY, CONVERTIBLE SEQUENCE
Type Of Approach lateral approach
Type Of Operator spring return without operating lever
UNSPSC 39122213
UPC 78590129123
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
