SQD 9007FTSD1

Limit Switch 600Vac 20Amp Ft+Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 20Amp Ft+Options

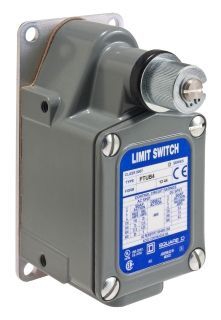

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 20Amp Ft+Options

UPC:  78590180893

Part Number: 9007FTSD1

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007FTSD1
Actuator Head Type SIDE ROTARY
Additional Information ENCLOSURE TYPE FOUNDRY CASTING; CONTACT SWITCH TYPE 3 POINT STANDARD; BASE PLATE TYPE TAPERED END MOUNTING HOLE
Approval UL 508, CSA, CE
Base Price 0.0000
Body Material DIE CAST ZINC
Catalog Number 9007FTSD1
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type 1/2 INCH NPT CONDUIT
Contact Configuration SPDT, 1NO-1NC
Contact Rating 600 VAC/VDC 20 AMPERE
CountryOfOrigin CH
DDCATEGORY 2184
Differential Travel 12 DEG
Directory CIS
Enclosure NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 20Amp Ft+Options;LIMIT SWITCH 600VAC
Item Number 80893
Long Description LIMIT FOUNDRY SWITCH, SEVERE DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; SNAP ACTION OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING; UL 508, CSA, CE APPROVAL
MSDS Form Number *
Model 9007FT
Noun *
Operating Temperature -10 TO 185 DEG F
Operation Type SNAP ACTION
Pretravel 14 DEG
Product Description Limit Switch 600Vac 20Amp Ft+Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 89 DEG
Type SEVERE DUTY, CONVERTIBLE SEQUENCE
UNSPSC 39122213
UPC 78590180893
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007FTSD1
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
